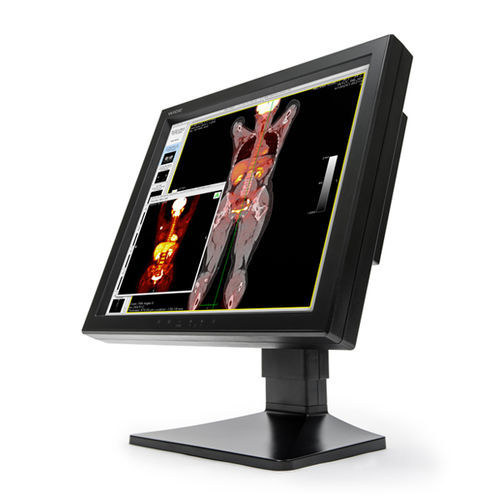

Diagnostic display CX10N

medical imaging1280 x 102419"

The WIDE 19″ 1mp Modality Color Display (CX10N) is a high-performance medical imaging monitor designed for clinical and modality applications. It features a 1MP 19-inch TFT AMLCD color panel with a native resolution of 1280x1024, offering excellent image clarity and color accuracy. The display provides a wide 178° viewing angle and is DICOM 3.14 compliant, ensuring consistent image quality for medical diagnostics. Multiple pre-set view modes are available, and the monitor supports both VGA and DVI digital video inputs for versatile connectivity.

Main Features

• 1MP 19″ Modality Color Display
• 1,280×1,024 resolution
• 300cd/m² Brightness; 178° wide viewing angle
• DICOM 3.14 Compliance
• Multiple pre-set view modes, VGA, DVI

Technical Specifications

• Model: CX10N
• LCD Panel: TFT AMLCD Color
• Native Resolution: 1280(H) x 1024(V)
• Pixel Pitch: 0.294mm x 0.294mm
• Active Display Area: 376.3mm x 301.1mm (14.8″x11.8″)
• Active Screen Size (Diagonal): 481.9mm (19.0″)
• Viewing Angle (Typ): 178º,178º at 10:1 Contrast Ratio
• Brightness Max. (Typ): 300cd/m²
• Brightness Calibrated (Typ): 150cd/m² (DICOM White)
• Contrast Ratio (Typ): 1,000:1
• Bit Rate for Look-Up Table: 10-bit
• Digital Video Input: DVI-D, Aanalog D-sub 15pin
• Display Communication: DDC2B (VESA Standard Compliance)
• Universal Serial Bus (USB): N/A
• Power Supply: AC Input: 100-240V±10% / 60Hz/50Hz±3Hz | DC Output: +12V
• Built-in Sensors: SBC
• Luminance Uniformity Control (LUC): N/A
• Display Adjustments: Power On/Off, Menu, Exit, Left/Right
• OSD Languages: English, German, French, Spanish, Italian
• LED Light (PrivateLite®): N/A
• Power Consumption: Max: 25W, Power Save: 3W
• Tilt/Swivel/Height Adjustments: -3º,+30º/±30º/108mm
• Portrait/Landscape Rotation: 90º (Counter clockwise)
• Mounting Hole: VESA Standard (100x100mm)
• Weight: 7.5Kg(16.50lb) with Stand
• Dimension: 436.5mm(W)x455.5mm(H)x200mm(D)
• Operational Temperature: 0ºC to 40ºC (32ºF to 104ºF)
• Operational Humidity: 10% to 80%
• Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
• Certifications and Standards: IEC/EN60601-1, FCC Class B, CE, VCCI Class B
• Options: Protective Glass, Touch Screen
