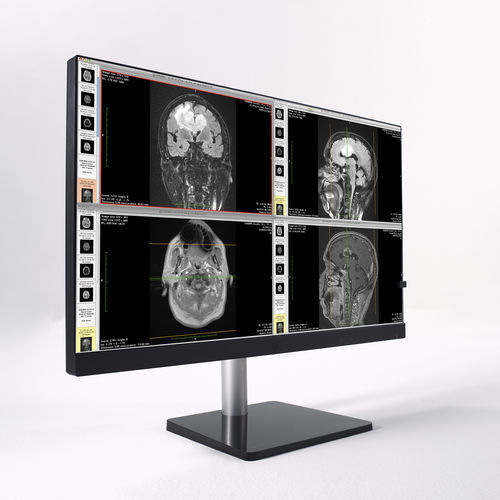

Medical imaging display CL24N

full HD1920 x 120023.8"

The WIDE 23.8″ 2.3mp Clinical Color Display (CL24N) is a high-performance medical imaging monitor designed for clinical environments. It features a 2.3MP 23.8-inch TFT AMLCD AAS color panel, providing accurate and consistent color reproduction for clinical applications. The monitor supports 10-bits simultaneous display with a 10-bits LUT, ensuring smooth gradations and precise image quality. Stable Brightness Control (SBC) and preset DICOM mode are included for reliable performance in medical imaging. Multi-windowing displays are supported for enhanced workflow efficiency.

Main Features

• 10-bits Simultaneous Monitor (10-bits LUT)
• Stable Brightness Control (SBC)
• Preset DICOM Mode
• Supported Multi Windowing Displays

Technical Specifications

• Model: CL24N
• LCD Panel: TFT AMLCD AAS Color
• Native Resolution: 1920(H) x 1080(V)
• Pixel Pitch: 0.2745mm x 0.2745mm
• Active Display Area: 527.04mm x 296.46mm (20.75”x11.67”)
• Active Screen Size (Diagonal): 604.52mm (23.8 “)
• Viewing Angle (Typ): 178º,178º at 10:1 Contrast Ratio
• Brightness Max. (Typ): 400cd/m²
• Brightness Calibrated (Typ): 200cd/m²
• Contrast Ratio (Typ): 1,000:1
• Bit Rate for Look-Up Table: 10-bit
• Digital Video Input: Mini DisplayPort, Mini HDMI
• Display Communication: DDC2B (VESA Standard Compliance)
• Universal Serial Bus (USB): –
• Power Supply: AC Input 100-240Volt±10%/60Hz/50Hz±3Hz | DC Output +12V
• Built-in Sensors: Ambient, Human
• Luminance Uniformity Control (LUC): Yes
• Display Adjustments: Ambient, Left, Select, Right, Power
• OSD Languages: English
• LED Light (PrivateLite®): –
• Power Consumption: MAX : 20W, Power Save : Less than 5W
• Tilt/Swivel/Height Adjustments: -5º,+15º/ x / 45mm
• Portrait/Landscape Rotation: 90º (Counter clockwise)
• Mounting Hole: VESA Standard (100mmx100mm)
• Weight: 5.6Kg(12.346lb) with Stand
• Dimension: 538.1mm(W)x469.8mm(H)x103.4mm(D)
• Operational Temperature: 0ºC to 40ºC (32ºF to 104ºF)
• Operational Humidity: 8% to 80%
• Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
• Certifications and Standards: ANSI/AAMI ES 60601-1, EN60601-1, IEC60601-1, CE, VCCI, KC, FCC
• Screen Protection: –
• Options: IQ Sensor III
