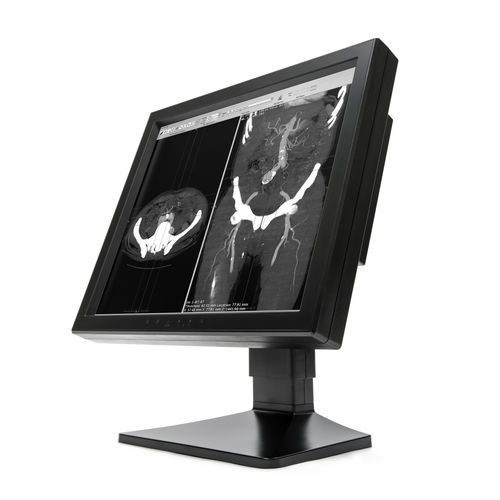

Diagnostic display MX10P

medical imaging1280 x 102419"

The WIDE 19″ 1mp Modality Mono Display (MX10P) is a high-performance medical imaging monitor designed for clinical and modality applications. It features a 1MP 19-inch grayscale TFT AMLCD IPS panel with a 10-bit LUT, delivering precise image quality and factory-calibrated DICOM compliance for accurate diagnostics. The display offers a native resolution of 1280 x 1024, a maximum brightness of 1,000 cd/m², and a calibrated brightness of 500 cd/m², ensuring clear and consistent visuals in demanding environments.

Key Features

• 1MP 19″ Modality Mono Display
• 10-bit LUT for enhanced grayscale rendering
• 1,280 x 1,024 native resolution
• 1,000 cd/m² maximum brightness
• Factory Calibrated DICOM compliance

Technical Specifications

• Model: MX10p
• LCD Panel: TFT AMLCD IPS Grayscale
• Native Resolution: 1280(H) x 1024(V)
• Pixel Pitch: 0.294mm x 0.294mm
• Active Display Area: 376.3mm x 301.1mm (14.8″x11.8″)
• Active Screen Size (Diagonal): 481.9mm (19.0″)
• Viewing Angle (Typ): 170º, 170º at 10:1 contrast Ratio
• Brightness Max. (Typ): 1,000 cd/m²
• Brightness Calibrated (Typ): 500 cd/m²
• Contrast Ratio (Typ): 1,000:1
• Bit Rate for Look-Up Table: 10-bit
• Digital Video Input: DVI-D, Analog D-Sub 15Pin, BNC(SOG) IN, S-Video, CVBS
• Display Communication: DDC2B (VESA compliance)
• Universal Serial Bus (USB): N/A
• Power Supply: AC Input: 100-240V±10% / 60Hz/50Hz±3Hz | DC Output: +12V
• Built-in Sensors: SBC
• Luminance Uniformity Control (LUC): N/A
• Display Adjustments: Power On/Off, Menu, Exit, Left/Right, DICOM mode, Brightness
• OSD Languages: English, German, French, Italian, Spanish
• LED Light (PrivateLite®): N/A
• Power Consumption: Max: 35W
• Tilt/Swivel/Height Adjustments: -3º,+30º/±30º/108mm
• Portrait/Landscape Rotation: 90º (Counter clockwise)
• Mounting: VESA Standard (100x100mm)
• Weight: 8.0kg (17.64lb)
• Dimension: 436.5mm(W)x455.5mm(H)x200mm(D)
• Operational Temperature: 0ºC to 40ºC (32ºF to 104ºF)
• Operational Humidity: 10% to 80%
• Storage Temperature: -20˚C to 60˚C (4˚F to 140˚F)
• Certifications and Standards: UL60601-1, IEC/EN6060-1, FCC ClassB, VCCI, CE, KC, CCC
• Options: Protective Glass
