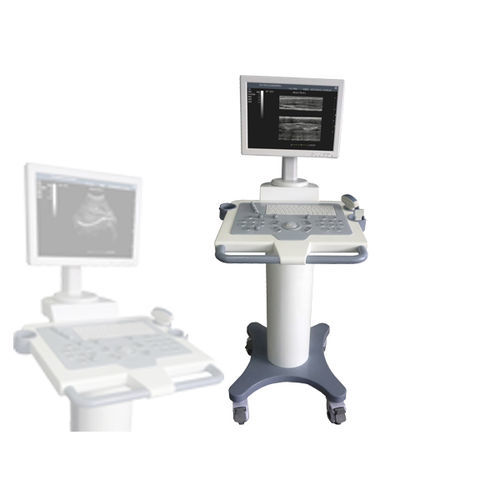

On-platform ultrasound system E110
for multipurpose ultrasound imagingB/Wconvex-array

on-platform ultrasound system
on-platform ultrasound system
on-platform ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
on-platform
Application
for multipurpose ultrasound imaging
Imaging modes
B/W
Probe type
convex-array, linear-array, microconvex-array
Screen size
15-inch
Probe frequency

Min.: 2 MHz

Max.: 11 MHz

Weight

25 kg (55.12 lb)

Length

760 mm (29.9 in)

Height

580 mm (22.8 in)

Depth

860 mm (33.9 in)

Description

E110 Ultrasonic Diagnostic Imaging System Specification Technical Spécification B&W mode: B,M,2B,B/M,4B Gray sacle: 256 Display: 15”LED monitor Transducer frequency: 2-11Mhz Digital technology: Wide-angle imaging Panoramic focusing technology Rolling M technology Scanning depth: 310mm Imaging Processing Pre-processing: Cloud processing technology 8-segment TGC Gain(B&W) Dynamic range Persisitence M Soften Noise suppression Post-processing: Image enhancement Gray Map Pseudo Color Map Tissue Specific Imaging Left/right reverse Up/down reverse Functions Cine-loop: 340 frame cine loop memory USB ports: 2 ports Zoom: Stepless zoom for the active image THI: Tissue Harmonie Imaging Opt: One-key Optimize DICOM: DICOM3.0 Print:Report print for text&graph&image Measurement & Calculations B mode: Distance, angle, area, volume, trace length,distance ratio M mode: Distance, time, slope, Heart Rate,Software packages: Abdomen,obstetric,Gynecology,Cadiac,Small Parts Others Transducer connector: 3 active transducer connector ports Peripheral ports: Video,2 USB ports,1 networking port,l power inlet Power supply:100-240V~ 50/60Hz <100VA Dimensions(main unit): 860mm(W)* 760mm(L)* 580mm(H) Packing dimensions : 900mm(W)*800mm(L)*620mm(H) Net weight: About 25kg Gross weight: About 35kg Standard Configurations main unit 15”LED with high resolution: 1024*768 Two USB ports One composite video signal output One networking port One power inlet One convex probe(3.5M R60) Three transducer connectors Plenty of measurement&calculation software packages 18 months warranty since ex-factory date for main unit 12 months warranty since ex-factory date for probes
