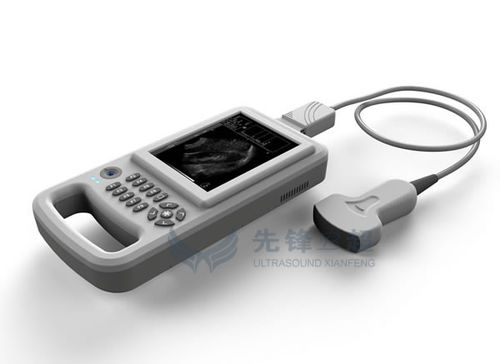

Hand-held ultrasound system XF20
for multipurpose ultrasound imagingB/W

hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
hand-held ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
hand-held
Application
for multipurpose ultrasound imaging
Imaging modes
B/W
Probe frequency

3.5 MHz

Max.: 7.5 MHz

Min.: 2.5 MHz

Weight

1.2 kg (2.65 lb)

Length

302 mm (11.9 in)

Height

152 mm (6 in)

Depth

40 mm (1.6 in)

Description

XF20 Handheld Digital Ultrasound Scanner Model - XF20 Handheld Digital Veterinary Ultrasound Scanner Net weight - 1.2KG light weight handiness Size - 302mmx152mmx40mm Display size: - 6.5 inch LED displayer Display modes: - B;B/B;4B;B+M;M Dynamic range: - 0~120dB adjustable Focus position: - dynamic electron focusing Gray scale levels: - 256 Gain control: - 8 segments TGC and overall gain can be adjusted respectively Image - Clear image with high resolution Image processing: 8γ corrections frame correlation point correlation line correlation 7 kinds of digital filtering state digital edge enhancement and pseudo color processing According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.(Our products' advantage) Image polarity: - left and right flip;up and down flip Frequency conversion: - 2.5Mhz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion frequency range applies 5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe Image multiplying factor: - 3.5MHz/R60 convex array probe:x0.8;x1.0,x1.2,x1.5, x1.8, x2.0(6 modes) Measuring function: distance circumference/area(method of ellipse,method of loci) volume heart rate gestational weeks(BPD,GS,CRL,FL,HL,OFD,TTD,AC) expected date of confinement and fetus weight,etc.
