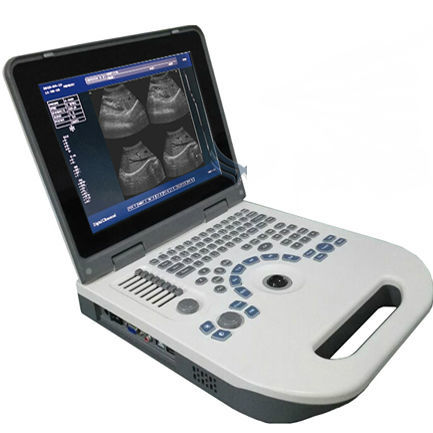

On-platform ultrasound system XF30A(XF50)

for multipurpose ultrasound imagingB/Wconvex-array

I.Specification: Model - XF30A(XF50) Note book ultrasound Scanner Display Modes - 3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M 6.5MHz/R13 Dimpling array probe:B 7.5 MHz/L40 Line array probe:B Image Mutiplying Factor - 3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0 ( 6modes)x0.8, x2.0 (display penetration depth) 6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes) 7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes) E-zoom - magnify 2 times of real time image Dynamic Range - 0~120dB ajustable Focus Position - 1,2,3 and 4-segments dynamic electron focusing Image Processing: - γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc. According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue. Frequency Conversion: - 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe Measuring Function - Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc. Annotation Function - hospital name, patient’s name, age and gender 64 body marks (with probe’s position); Full-screen character annotation; Real-time clock display
