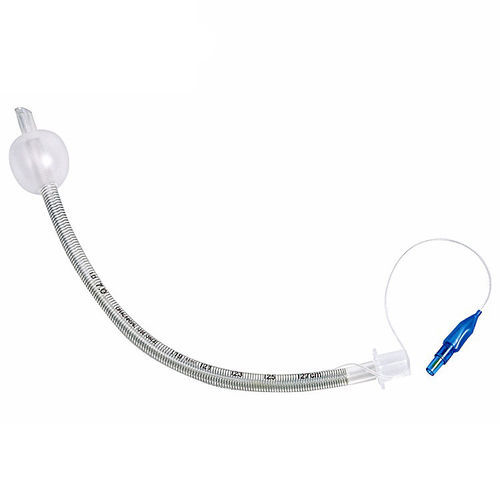

Oral and nasal endotracheal tube SURET039 series

disposable

Product description

• 100% silicone or polyvinyl chloride (PVC).
• Stainless steel coil embedded in the tube wall for anti‑kinking and flexibility.
• Available with or without introducer guide (guide variants listed below).
• Murphy tip.
• Sterile, single‑use packaging.
• Radiopaque line along the tube for X‑ray visualization.
• Available internal diameters according to selection (see sizes).
• Low‑pressure, high‑volume cylindrical cuff (balloon) with pilot balloon and self‑sealing valve.
• Standard 15 mm outer conical connector.
• Visible depth markings and black insertion mark for positioning.

Features

• Connector: Standard 15 mm outer conical joint for ventilator and circuit compatibility.
• Valve & pilot balloon: Allows reliable inflation control and cuff pressure monitoring.
• Reinforced tube body: Embedded stainless steel spring/coil provides anti‑kinking while allowing reshaping.
• Black mark and visible depth graduations for accurate insertion and positioning.
• Cuff: Low‑pressure, high‑volume cylindrical cuff designed to provide even sealing and reduce localized tracheal pressure.

Different types

• Normal endotracheal tube: DEHP‑free options, available with or without cuff.
• Reinforced endotracheal tube: Flexible body with embedded coil for shape retention.
• Oral/nasal preformed tube: Preformed curvature for oral or nasal insertion.
• Injectable endotracheal tube: Includes injectable port for drug administration.
• Supraglottic & subglottic injectable tube: Two spray/port options at upper and lower glottic positions.
• Suction endotracheal tube: Integrated suction channel for subglottic secretion drainage.
• BlockBuster tip tube: Special soft tip to reduce tracheal wall trauma during insertion.
• Lubricious coating tube: Surface coating technology to form a lubricating film.
• Adaptive‑cuff tube: Cuff able to expand/contract intermittently with patient respiratory cycles.

Sizes and packaging
Reinforced endotracheal tube with cuffs
SURET039-20C — 2.0 mm
SURET039-25C — 2.5 mm
SURET039-30C — 3.0 mm
SURET039-35C — 3.5 mm
SURET039-40C — 4.0 mm
SURET039-45C — 4.5 mm
SURET039-50C — 5.0 mm
SURET039-55C — 5.5 mm
SURET039-60C — 6.0 mm
SURET039-65C — 6.5 mm
SURET039-70C — 7.0 mm
SURET039-75C — 7.5 mm
SURET039-80C — 8.0 mm
SURET039-85C — 8.5 mm
SURET039-90C — 9.0 mm
SURET039-95C — 9.5 mm

Reinforced endotracheal tube with cuffs and guides
SURET039-20CG — 2.0 mm
SURET039-25CG — 2.5 mm
SURET039-30CG — 3.0 mm
SURET039-35CG — 3.5 mm
SURET039-40CG — 4.0 mm
SURET039-45CG — 4.5 mm
SURET039-50CG — 5.0 mm
SURET039-55CG — 5.5 mm
SURET039-60CG — 6.0 mm
SURET039-65CG — 6.5 mm
SURET039-70CG — 7.0 mm
SURET039-75CG — 7.5 mm
SURET039-80CG — 8.0 mm
SURET039-85CG — 8.5 mm
SURET039-90CG — 9.0 mm
SURET039-95CG — 9.5 mm


Technical specifications

• Materials: 100% silicone or PVC (polyvinyl chloride) options.
• Reinforcement: Stainless steel coil/spring embedded in tube wall to prevent kinking.
• Cuff type: Low‑pressure, high‑volume cylindrical cuff with pilot balloon and self‑sealing valve.
• Connector: Standard 15 mm outer conical joint.
• Radiopaque line: Longitudinal radiopaque marker for X‑ray localization.
• Depth markings: Visible graduations and black insertion mark.
• Options: Versions with or without introducer guide; injectable port; suction channel; preformed oral/nasal shapes; lubricious coating; adaptive cuff; BlockBuster tip.
• Size range: Internal diameters 2.0–9.5 mm (models listed above).
• Packaging: Sterile single‑use packaging; sizes and references as listed.
