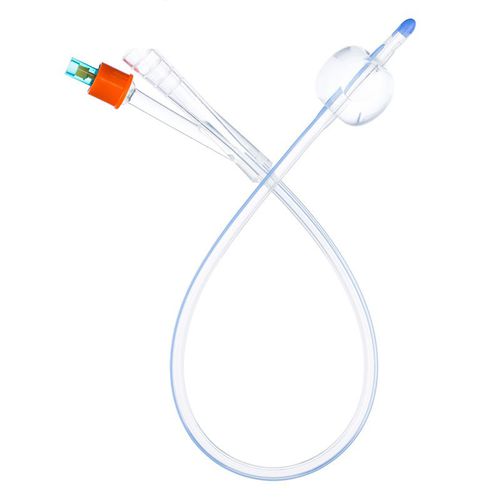

Urine drainage catheter

urethralatraumatic tipballoon

Product overview
Made from 100% medical grade silicone for urinary drainage. Designed for single-use (disposable) urinary catheterization with options for pediatric and standard lengths.

Sizes

• 2-way pediatric: length 270 mm, 8Fr–10Fr, balloon 3 / 5 cc
• 2-way (short/standard pediatric): length 310 mm, 12Fr–14Fr, balloon 5 / 10 cc
• 2-way standard: length 400 mm, 16Fr–24Fr, balloon 5 / 10 / 30 cc
• 3-way standard: length 400 mm, 16Fr–26Fr, balloon 30 cc

Features

• 100% medical grade silicone: high biocompatibility and anti-aging performance.
• Smooth surface for atraumatic insertion and easy drainage flow.
• Antibacterial and anti-backflow design to reduce risk of contamination.
• Color-coded connectors for rapid visual identification of size.
• Retention time up to 30 days when used according to clinical guidance.
• Manufactured according to ISO 13485 and CE standards.

Precautions

• Do not use if the sterile package is damaged or opened.
• Discard properly after single use according to local medical waste regulations.
• Do not use lipophilic (oil-based) lubricants on the balloon or catheter.
• Use only as directed by clinical protocol and trained personnel.

Packing & dimensions
Typical packing: 500 pcs per carton. Carton size (example): 52.5 x 41 x 43 cm. Packing may vary by configuration and size.

Technical specifications

• Material: 100% medical grade silicone.
• Product type: Foley (urethral) catheter, disposable.
• Available types: 2-way and 3-way; pediatric and standard variants.
• Size range: approximately 8Fr–26Fr depending on model.
• Lengths: 270 mm; 310 mm (pediatric); 400 mm (standard).
• Balloon capacities: 3 cc, 5 cc, 10 cc, 30 cc depending on model.
• Connector: color-coded for size visualization.
• Single use only. Stated retention time: up to 30 days (follow clinical guidance).
• Certifications: ISO 13485, CE (as declared by manufacturer).
