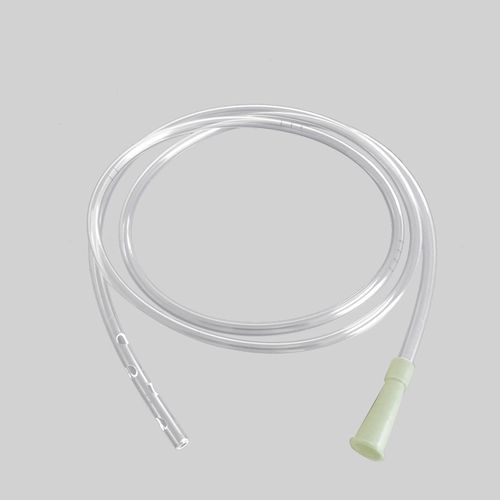

Pediatric nasogastric tube

siliconegraduatedradiopaque

Product description
Disposable medical stomach tube manufactured from 100% medical-grade silicone for enteral nutrition and gastric drainage. Inserted via mouth or nose; available with an atraumatic rounded closed tip or an open tip. Features clear depth (scale) marks, a radio-opaque line for radiographic visualization and a color-coded connector for quick size identification.

Application

• Enteral feeding and gastric drainage for patients unable to take adequate nutrition orally.
• Used when swallowing is unsafe or when congenital/structural issues of the mouth, esophagus or stomach prevent oral intake.

Features

• 100% medical silicone construction suitable for prolonged contact.
• Clear depth (scale) marks and continuous radio-opaque line for accurate placement and radiographic control.
• Two tip options: atraumatic rounded closed tip or open tip.
• Double-function connector: fits syringes and standard nutrition/aspiration devices.
• Color-coded connectors for fast size recognition.

Sizes and color coding
Fr 6 — Light green
Fr 8 — Blue
Fr 10 — Black
Fr 12 — White
Fr 14 — Green
Fr 16 — Orange
Fr 18 — Red
Fr 20 — Yellow
Fr 22 — (adult size)
Fr 24 — (adult size)

Specifications and notes
Fr 6 — 700 mm (children)
Fr 8 — 700 mm (children)
Fr 10 — 700 mm (children)
Fr 12 — 1250 / 900 mm (adult)
Fr 14 — 1250 / 900 mm (adult)
Fr 16 — 1250 / 900 mm (adult)
Fr 18 — 1250 / 900 mm (adult)
Fr 20 — 1250 / 900 mm (adult)
Fr 22 — 1250 / 900 mm (adult)
Fr 24 — 1250 / 900 mm (adult)

Technical specifications

• Material: 100% medical-grade silicone.
• Tip types: atraumatic rounded closed tip or open tip.
• Depth marks: clear scale markings along the tube.
• Imaging: continuous radio-opaque (X-ray) line for visualization.
• Connector: color-coded, double-function for syringes and nutrition/aspiration devices.
• Available sizes: Fr 6, 8, 10, 12, 14, 16, 18, 20, 22, 24.
• Lengths: 700 mm for pediatric sizes (Fr 6–10); 1250/900 mm options for adult sizes (Fr 12–24).
