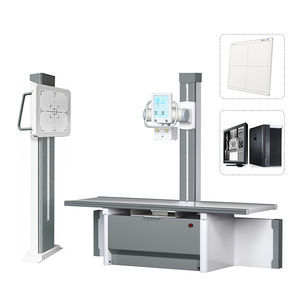

Digital X-ray system YSX-uDR50Y

for multipurpose radiographywithout tablewith swiveling tube stand

The U-arm DR Can achieve a variety of functions such as digital photography. Meet the comprehensive needs of high standards in general hospitals Features Rich DR upgrade reserve interface Fault self-diagnosis and protection Automatic calibration of tube current X-ray tube has the function of filament dormancy AEC function, different ionization chamber as optional Analog-digital double -loop control, simple operation, high intelligence High kV, high current, high power, strong penetration, able to handle obese patients Ray source and beam device Power supply: 380V Power: 50kW Photography function The tube voltage is 40-150 kV The tube current is 10~630mA Loading time ranged from 2 to 6300ms Inverter frequency: 400kHz tion field: Max 31x3 Nominal tube voltage: 125kV Dual focus:0.6mm(small focus)/1.2mm(large focus) Power:20kw/50kW Anode heat capacity:(300KHU) Flat panel detector Active Area (inch):17 x 17 Pixel Matrix:3072 x 3072 Pixel size:139um AD conversion number: 16bit Scintillator type: Csl
