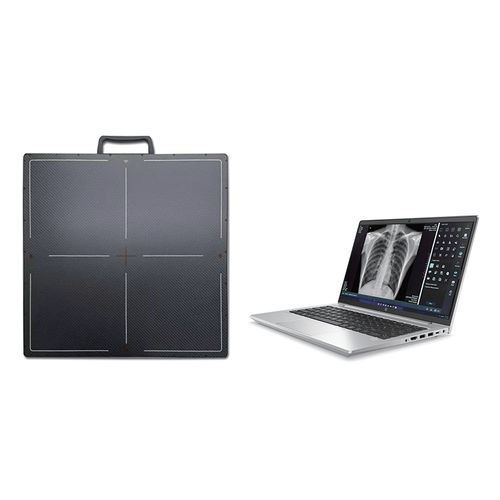

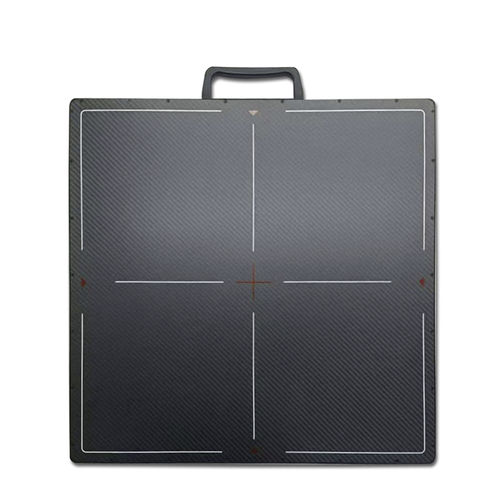

Multipurpose radiography flat panel detector YSFPD4343R

portable17 x 17

YSFPD4343R is a 17x17 inch wired cassette-sized FPD for radiographic imaging. It features a 139um pixel pitch with direct deposition Csl. It is the optimal choice for a high-end DR system. This detector ensures clear and detailed imaging, high resolution and wide gray scale degree. It can reduce the impact of motion artifacts to the minimum. Imaging radiation is low, 30%-70% less radiation than traditional imaging. The DR software interface is simple and clear, with powerful edit functions. Technical Specifications Detector YSFPD4343R Image Output Time 1S Sensor a-Si Limited Resolution 3.6 lp/mm Scintillator Type Perovskite / Csl A/D Conversion 16 bit Dimensions 460x460x15 mm Data Interface GigE Weight 4.2 kg Operating Temperature 5~35 °C Power consumption 12 W Storage Temperature -10~50°C Active Area 430x430 mm Operating Humidity 20~90%RH(Non-condensing) Pixel Size 139 μm Storage Humidity 10~95%RH(Non-condensing) Pixel Matrix 3072 x 3072
