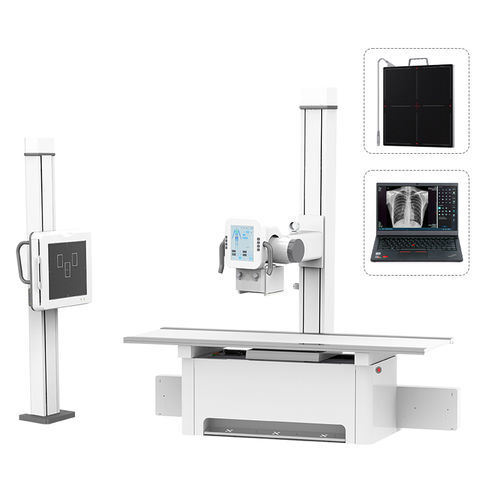

Radiography system YSF50DR-B2

digitalfor multipurpose radiographywith table

YSF50DR-B2 digital radiography X‑ray system offers 50 kW high‑output imaging, dual‑focus accuracy, and streamlined controls for full‑body exams. An affordable, reliable DR solution for hospitals and clinics. YSF50DR-B2 Max.KW 50KW Power Supply - 50HZ, 60HZ, wire diameter >4mm2, internal resistance<0.52; 20/32/50kW(220V/380V available), 65kW(only 380V) Inverter Frequency - 50kHZ~220kHZ Tube Movement - Up & down lift (Electric), left & right rotation Column - Left & right movable Radiography Table - Four-way floating Bucky Stand - Electric up & down (synchronizes with tube up & down movement) Detector Size - 17*17 inch Pixel Resolution - 3072*3072 Pixel Pitch - 139μm A/D Conversion - 16bits Spatial Resolution - 3.6lp/mm Size - 460*460*15mm Interface - Wired (Wireless is optional) Software - Professional medical software with multi-languages available Workstation - Intel i5 CPU, 8G memory, 2G card, 128G SSD, PCI-E, R232; 22.5 inch display. Other options are available upon request.
