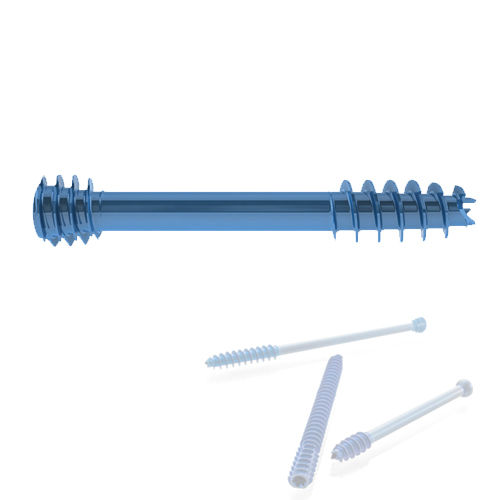

Foot compression bone screw
handgeneral purposecannulated

foot compression bone screw
foot compression bone screw
foot compression bone screw
foot compression bone screw
Add to favorites
Compare this product


Characteristics

Applications
foot, hand, general purpose
Screw features
cannulated, headless

Description

Z-cannulated screws offer highest convenience und safety during application. All screws are self-drilling and self-tapping. With the development of the cannulated screws, Z-Medical has specifically optimized all known problem areas of systems available on the market (insufficient compression area, insufficient adjustment possibilities and continuation of compression, unnecessary pre-drilling at normal bone density, large number of operational steps which often lead to the necessity of opening a new sterile set for a single screw). Product characteristic: - Only two sets of instruments and two guide wire sizes for 121 types of screws. Ø 3 / 3,5 / 5 / 7,2 mm (manually / machine driven insertion) - Big cannulation for stable guide wire - Big drive for optimal power transmission - Easy insertion with special thread form (without pre-drilling) - Possibility of machine driven insertion (final position manually) _________________________________________________________________________ Screw specific product characteristic "Z-Double-Compression Screw": - Mutually aligned flanks and forces produce maximum continuous compression - Reduced tissue irritation by head shape and optimal sunked head. - Optimum setting high/low compression with one screw - Big cannulation for stable Guide wire - Big drive for optimal power transmission - Ø 3mm, Ø 3,5mm, Ø 5mm, Ø 7,2mm Approvals ECC 93/42 // 510 (k) only in 3mm

Catalogs

No catalogs are available for this product.

See all of Z-Medical‘s catalogs
