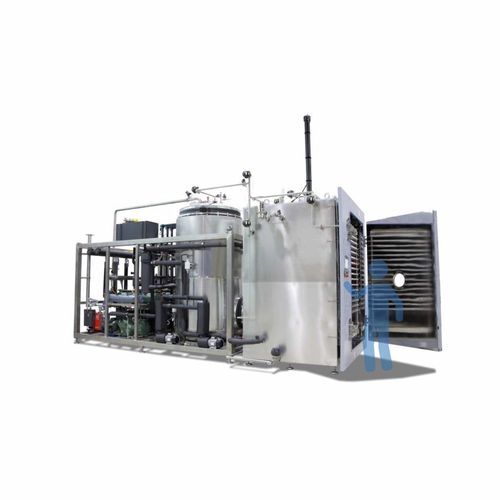

Laboratory freeze dryer

floor-standing

Above a certain size, we manufacture specifically according to your requirements in terms of footprint size, number, performance and layout. The customer’s requirements vary enormously for larger freeze dryers. With our very wide product range of already realised projects, we are well equipped for your requirements in addition to the completely possible special plant construction. We manufacture all systems in our factory. From planning to implementation – everything from a single source. Areas of application for this type of freeze-drying plant are the pharmaceutical industry, life sciences and, for example, biotechnology. We will work with you to develop a system that is perfectly tailored to your needs. Our possibilities: Special parking space packages with different numbers and distances Capacitive vacuum sensor Oil-sealed or oil-free vacuum pumps Pharma-compatible GMP design incl. documentation (IQ,OQ) Cleaning (CIP), sterilisation (SIP) Steam or VHP Insulator connection *Wall installation Process visualisation 21CFRpart11 Pizzadoor Total shelf area - 3 – 60 m² Ice condensor capacity - 50 -1.200 kg Temperature ranges - Shelf space -40…+60 °C (optional -55…+60 °C) Condenser -50 °C (optional -75 °C)
