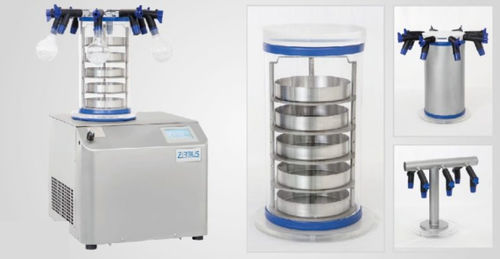

The VaCo series is the entry-level freeze dryer and lyophilizer. A modular system makes the laboratory freeze dryer perfectly suitable for a wide range of tasks in your laboratory. The housing is made of robust stainless steel. Different modules can be used with the basic unit, depending on the application. The units are optionally available with a -50 °C condenser or -80 °C condenser and are built according to new EU F-Gases Regulation (EU) No. 517/2014. Environmentally friendly natural refrigerants are used.
VaCo 2, -50°C VaCo 2, -80°C
Dimensions
of condenser - Ø 200 x 180 mm - Ø 200 x 180 mm
Volume - 5,7 litres - 5,7 litres
Temperature
of condenser - -50°C - -80°C
Ice capacity - 2 kg / 24h - 2 kg / 24h
Max. ice
capacity - 3 kg - 3 kg
Cooling system - one- stage, Refrigerant according to the latest F-Gas regulation - two-stage, Refrigerant according to the latest F-Gas regulation
Outer
dimensions (wxhxd) - 490 x 450 x 470 mm - 490 x 450 x 470 mm
Weight of basic unit - 45kg 58kg
Electical connection - 230 V, 50/60 Hz - 230 V, 50/60 Hz
The following options are available:
Acrylic glass chamber: The acrylic glass chamber is available in different dimensions, depending on the unit size. The base plate represents the connecting piece to the ice condenser. The chamber lid is also available with vacuum connections (NS 29/32) on request.
Stainless steel chamber: When using organic solvents or substances that attack the acrylic glass, it is recommended to use a stainless steel chamber.
