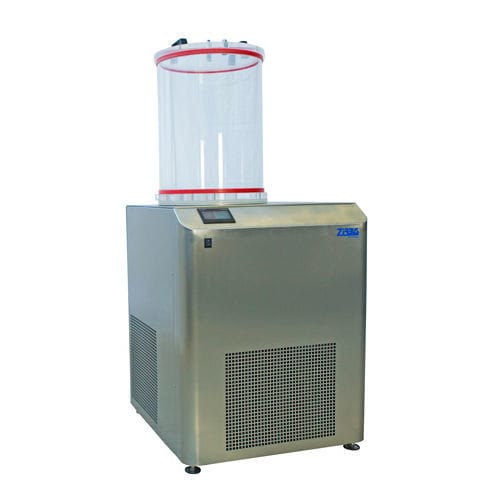

Laboratory freeze dryer VaCo 10

modular

The VaCo series is the entry-level freeze dryer and lyophilizer. A modular system makes the laboratory freeze dryer perfectly suitable for a wide range of tasks in your laboratory. The housing is made of robust stainless steel. Different modules can be used with the basic unit, depending on the application. The units are optionally available with a -50 °C condenser or -80 °C condenser and are built according to new EU F-Gases Regulation (EU) No. 517/2014. Environmentally friendly natural refrigerants are used. VaCo 10, -50°C - VaCo 10, -80°C Dimensions of condenser - Ø 400 x 400 mm - Ø 400 x 400 mm Volume - 50 litres - 50 litres Temperature of condenser - -50°C - -80°C Ice capacity - 10kg/24h - 15kg/24h Max. ice capacity - 12 kg - 20 kg Cooling system - one- stage, Refrigerant according to the latest F-Gas regulation - two-stage, Refrigerant according to the latest F-Gas regulation Outer dimensions (wxhxd) - 700 x 900 x 700 mm - 700 x 900 x 700 mm Weight of basic unit - 75 kg - 90 kg Electrical connection - 230 V, 50/60 Hz - 400 V, 50/60 Hz The following options are available: Acrylic glass chamber: The acrylic glass chamber is available in different dimensions, depending on the unit size. The base plate represents the connecting piece to the ice condenser. The chamber lid is also available with vacuum connections (NS 29/32) on request. Stainless steel chamber: When using organic solvents or substances that attack the acrylic glass, it is recommended to use a stainless steel chamber. Aluminum insert rack: The aluminum insert rack is available in 2 packages. With heated or unheated shelves. The heated shelves speed up the process.
