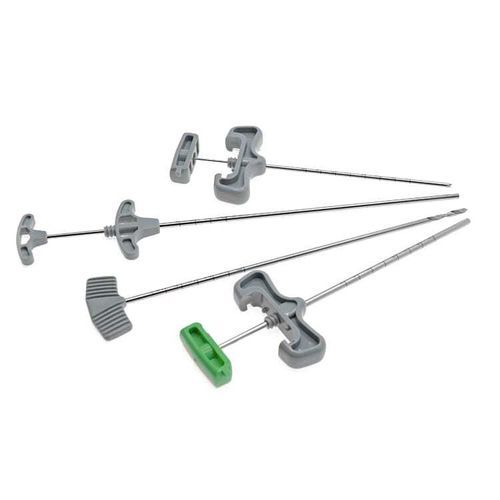

Access sheath spine augmentation system PVP TOOLS KIT

drillbone cement syringeballoon catheter

Overview
ZorayPT’s PVP TOOLS KIT for percutaneous vertebroplasty is a precision single-use instrumentation kit including a percutaneous access device, guide wire, expansion cannula, bone drill, balloon filling device and bone cement applier. Components use medical-grade stainless steel, optional nitinol for guide wire, and medical-grade plastics. Manufactured in an ISO 13485 certified Class 100,000 cleanroom with OEM/ODM customization and integrated in-house molding, metal processing and cleanroom assembly.

Key Features

• Material: medical stainless steel, nitinol option for guide wire, medical-grade plastics for plastic components; customizable materials.
• Kit components: percutaneous access device; guide wire; expansion cannula; bone drill; balloon filling device; bone cement applier.
• Dimensions: access device 2.5–4 mm Ø, 100–150 mm L; guide wire 0.8–1.2 mm Ø, 300–600 mm L; expansion cannula 3–5 mm Ø, 100–150 mm L; bone drill 3–5 mm Ø, 100–150 mm L.
• Design: beveled or diamond tip access device; flexible, kink-resistant guide wire; smooth inner lumen cannula; twist-flute trocar-tip bone drill; controlled balloon inflation; manual cement delivery; single-use; configurable options.
• Production: in-house molding, metalworking and cleanroom assembly for quality control and customization.

Applications

• Percutaneous vertebroplasty: controlled cement delivery for vertebral compression fractures.
• Spinal stabilization: adjunct support in osteoporotic or metastatic vertebral procedures.
• Pain management: targeted intervention for vertebral pain relief.

Manufacturing & Quality
Produced in an ISO 13485 certified Class 100,000 cleanroom. ZorayPT provides OEM/ODM customization and in-house capabilities including grinding, marking, bending, drilling, head forming, taper reduction/flaring, threading, chamfering, flanging, grooving, flattening, diameter modification, polishing/coating, syringe base and mold tooling, and die cast mold production.

Technical specifications

• Percutaneous Access Device: 100–150 mm length; 2.5–4 mm Ø; beveled or diamond tip; radiopaque markings; customizable.
• Guide Wire: 300–600 mm length; 0.8–1.2 mm Ø; flexible, kink-resistant, atraumatic tip; customizable; nitinol option.
• Expansion Cannula: 100–150 mm length; 3–5 mm Ø; smooth inner lumen; radiopaque marking; customizable.
• Bone Drill: 100–150 mm length; 3–5 mm Ø; twist flute, trocar tip; T-handle; single-use; customizable.
• Balloon Filling Device: 10–30 mL capacity; up to 30 atm rating; precise inflation control; Luer lock; customizable.
• Bone Cement Applier: 1–5 mL per push (total 20–30 mL); manual push; Luer lock compatible; customizable.
• Production environment: ISO 13485 certified; Class 100,000 cleanroom; in-house molding, metal processing and assembly.
• Customization: kits tailored to customer samples, drawings or specifications using listed manufacturing processes.
