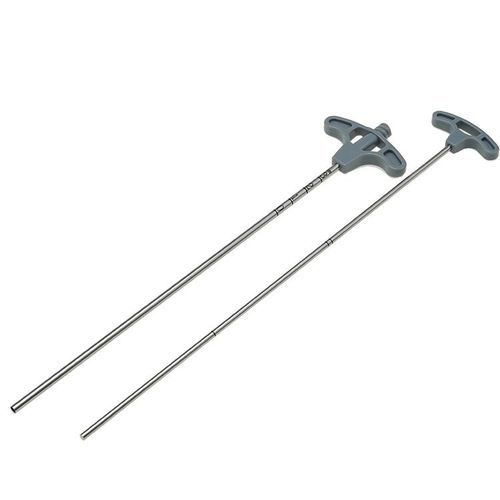

Injection cannula ZPT-BCDC-001

accessstraightstainless steel

Product overview
ZorayPT’s Bone Cement Injection Cannula is a precision-engineered accessory designed for safe and controlled bone cement injection during Percutaneous Vertebroplasty (PVP) and Percutaneous Kyphoplasty (PKP) procedures.
Manufactured from medical-grade stainless steel and available in 10G–11G gauges and lengths 200 mm, 203 mm, 216 mm (customizable), the cannula supports thoracic and lumbar vertebra augmentation.
Each delivery set includes a matching stylet; the coaxial design enables pedicle access and controlled cement delivery to optimize distribution and reduce leakage risk.

Key features

• Product: Bone Cement Injection Cannula / Bone Cement Delivery Cannula Set (with Stylet)
• Gauge: 10G / 11G (customizable)
• Length: 200 mm / 203 mm / 216 mm (customizable)
• Material: Medical-grade SUS 304 / 316L (customizable)
• Design: Coaxial cement injection cannula with matching bone filler cannula stylet
• Tip types: Flat, Zigzag, Bevel, Groove, Crescent, One Side Groove (customizable)
• Handle: Ergonomic, customizable per client drawings
• All in-house OEM/ODM production for consistent process control

Applications

• Percutaneous Vertebroplasty (PVP): precise cement injection for vertebral stabilization
• Percutaneous Kyphoplasty (PKP): controlled delivery through the cannula after balloon cavity creation
• Thoracic and lumbar vertebra augmentation: reliable bone cement delivery for thoracic and lumbar procedures

Why choose ZorayPT

• One-stop manufacturing: in-house processes to maintain process traceability
• ISO 13485 certified: produced in a Class 100,000 cleanroom
• Multiple tip designs and customizable ergonomics to match surgical workflow
• Automated production enabling shorter lead times
• Integrated manufacturing for cost-effective supply

Bone Cement Injection Cannula Specifications
Product Model: ZPT-BCDC-001
Gauge: 10G / 11G (customizable)
Length: 200 mm / 203 mm / 216 mm (customizable)
Material: Medical-grade SUS 304 / 316L (customizable)
Tip type: Flat, Zigzag, Bevel, Groove, Crescent, One Side Groove (customizable)
Application: PVP/PKP procedures, thoracic & lumbar vertebra augmentation

Technical specifications

• Model: ZPT-BCDC-001
• Gauge options: 10G, 11G (customizable)
• Length options: 200 mm, 203 mm, 216 mm (customizable)
• Materials: SUS 304 or SUS 316L medical-grade stainless steel (customizable)
• Tip geometries: Flat, Zigzag, Bevel, Groove, Crescent, One Side Groove
• Coaxial design with matching stylet for pedicle access and cement delivery
• Ergonomic handle customizable to client drawings/samples
• Manufactured under ISO 13485 conditions in a Class 100,000 cleanroom
• Supplied as a complete delivery cannula set including stylet
