HDMI graphics card MM3080TIB6-16G

PCI Expressmedical imaging

Product Overview

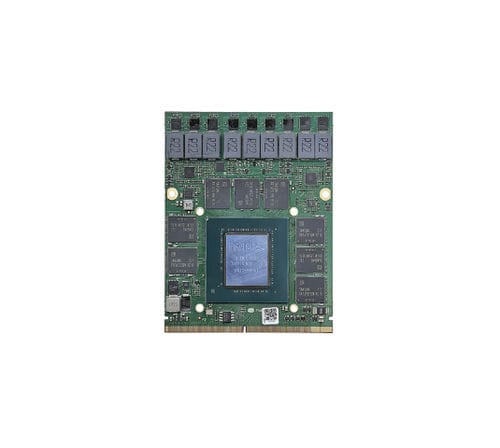

The MM3080TIB6-16G (V2) is an MXM 3.1 Type B graphics module based on NVIDIA Ampere architecture. It integrates an NVIDIA GeForce RTX3080Ti Mobility GPU with 16GB GDDR6 memory and is designed for high-performance embedded graphics and compute applications.

Model
Model: MM3080TIB6-16G

Key Features

• NVIDIA Ampere architecture with NVIDIA GeForce RTX3080Ti Mobility GPU
• 16GB GDDR6, 256-bit memory interface
• 7424 CUDA cores, 232 Tensor Cores, 58 RT Cores
• MXM 3.1 Type B form factor (105 × 82 mm)
• Display outputs: 2× DisplayPort 1.4++, 1× HDMI 2.1 (total 4 outputs), supports up to 8K
• PCIe 4.0 x16 full-speed interface
• TDP: standard 160W (optional 110W configuration)

Technical specifications

• GPU architecture: NVIDIA Ampere
• GPU: NVIDIA GeForce RTX3080Ti Mobility
• Memory: 16GB GDDR6, 256-bit
• CUDA cores: 7424
• Tensor cores: 232
• RT cores: 58
• Interface: PCIe 4.0 x16 (full speed)
• Form factor: MXM 3.1 Type B (105 × 82 mm)
• Video outputs: 2× DisplayPort 1.4++ + 1× HDMI 2.1 (4 outputs total), 8K capable
• TDP: 160W (optional 110W)

Applications

• High-performance embedded graphics workstations
• Edge AI inference and compute modules
• Industrial vision systems, medical imaging, autonomous driving platforms and other embedded systems requiring high graphics and compute performance
