Product overview

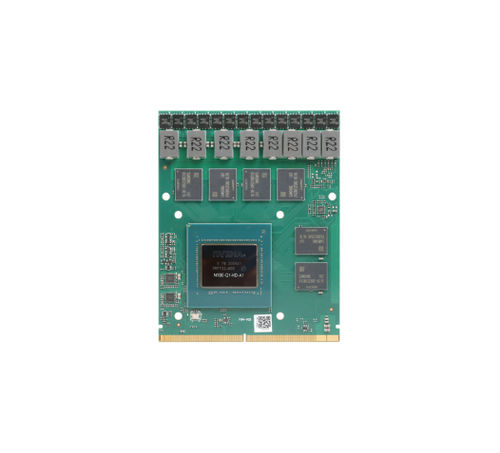

The MM3000B6-6G is an MXM 3.1 Type B graphics module based on the NVIDIA Quadro RTX3000 Mobility GPU (Turing). It features 1920 CUDA cores, 240 Tensor cores and 30 RT cores, delivering 6.8 TFLOPS single-precision performance. Memory is 6GB GDDR6 (192-bit) with 336 GB/s bandwidth. The module uses a PCIe 3.0 x16 interface and provides 4x DisplayPort 1.4++ outputs supporting up to 8K@120Hz. TDP is 82W, suitable for embedded professional systems that require a balance of performance and power.

Key features

• NVIDIA Turing architecture with NVIDIA Quadro RTX3000 Mobility GPU
• 6GB GDDR6 memory, 192-bit, 336 GB/s bandwidth
• 1920 CUDA cores, 240 Tensor cores, 30 RT cores
• MXM 3.1 Type B form factor (105 × 82 mm), PCIe 3.0 x16 interface
• 4 × DisplayPort 1.4++ outputs, supports 8K@120Hz
• TDP 82W
• Compatible with Windows 10/11 and Linux

Technical specifications
Model: MM3000B6-6G (RTX3000m)
GPU architecture: NVIDIA Turing
GPU: NVIDIA Quadro RTX3000 Mobility
Memory capacity: 6GB GDDR6
Memory bus: 192-bit
Memory bandwidth: 336 GB/s
Core clocks (Base/Boost): 945 / 1380 MHz
CUDA cores: 1920
Tensor cores: 240
RT cores: 30
TMUs: 120
ROPs: 64
SM count: 30
PCIe interface: PCI Express 3.0 x16
MXM spec: MXM 3.1 Type B
Dimensions: 105 × 82 mm
TDP: 82W
Display outputs: 4 × DisplayPort 1.4++
Max resolution: 7680 × 4320 @ 120Hz
OS support: Windows 10/11, Linux
Operating temperature: 0°C ~ 45°C
Storage temperature: -20°C ~ 75°C
Operating humidity: 0% ~ 95% (non-condensing)
Storage humidity: 10% ~ 90%
Power input: DC 12 ~ 19V, 3.3V & 5V ±5%
Single-precision (FP32): 6.8 TFLOPS
Double-precision (FP64): 223.5 GFLOPS
DirectX: 12 Ultimate (12_2)
OpenGL: 4.6
OpenCL: 3.0
Vulkan: 1.4
Shader Model: 6.8
CUDA version: 7.5

Applications

• Professional mobile and embedded workstations
• Medical imaging and diagnostic devices
• Industrial inspection and machine vision hosts
• 3D design, video encoding/decoding and AI inference in embedded systems
