PCI Express graphics card MMT1000A6-4G

medical imaging

Product overview

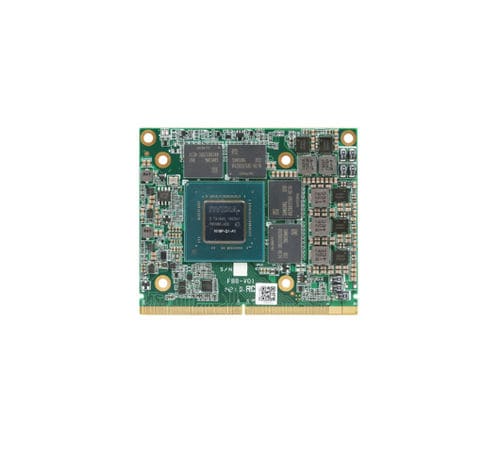

Compact MXM 3.1 Type A graphics module MMT1000A6-4G integrating the NVIDIA Quadro T1000 Mobility GPU with 4GB GDDR6 memory, designed for low-power embedded 2D/3D graphics and multimedia applications.

Detailed description
Based on the NVIDIA Turing architecture, the MMT1000A6-4G provides 896 CUDA cores, 56 TMUs and 32 ROPs with single-precision performance up to 3.5 TFLOPS. The 4GB GDDR6 (128-bit) memory delivers 192 GB/s bandwidth. The module conforms to MXM 3.1 Type A (70×82 mm) and uses a PCIe 3.0 x16 interface. Four DisplayPort 1.4++ outputs support up to 7680×4320@120Hz. Low thermal design power (standard 50W, optional 36W) enables integration in compact systems. Supported OS: Windows 10 (64-bit) and Linux (64-bit). Operating temperature range and power input make it suitable for embedded industrial PCs, digital signage, all-in-one workstations, thin industrial tablets and entry-level medical displays.

Key features

• NVIDIA Turing architecture — NVIDIA Quadro T1000 Mobility GPU
• 4 GB GDDR6, 128-bit memory interface, 192 GB/s bandwidth
• 896 CUDA cores, 56 TMUs, 32 ROPs — 3.5 TFLOPS (FP32)
• MXM 3.1 Type A form factor (70×82 mm), PCIe 3.0 x16
• 4 × DisplayPort 1.4++ outputs — up to 8K@120Hz
• Low TDP: 50W (optional 36W) for compact, low-power designs
• Compatible with Windows 10 64-bit and Linux 64-bit

Specifications
Model: MMT1000A6-4G (T1000m)
GPU architecture: NVIDIA Turing
GPU: NVIDIA Quadro T1000 Mobility
Memory: 4 GB GDDR6
Memory bus: 128-bit
Memory bandwidth: 192 GB/s
Core clocks (Base/Boost): 1395 / 1650 MHz
CUDA cores: 896
TMUs: 56
ROPs: 32
SM count: 14
PCIe: PCI Express 3.0 x16
MXM spec: MXM 3.1 Type A
Dimensions: 70 × 82 mm
TDP: 50W (optional 36W)
Display outputs: 4 × DisplayPort 1.4++
Max resolution: 7680×4320 @ 120Hz
OS support: Windows 10 64-bit, Linux 64-bit
Operating temperature: 0°C to 45°C (optionally -20°C)
Storage temperature: -20°C to 75°C
Operating humidity: 0%–95% non-condensing
Storage humidity: 10%–90%
Power input: DC 12–19V, 3.3V & 5V ±5%
FP32 performance: 3.5 TFLOPS
FP64 performance: 107.7 GFLOPS
DirectX: 12 Ultimate (12_1)
OpenGL: 4.6
OpenCL: 3.0
Vulkan: 1.3
Shader Model: 6.7
CUDA version: 7.5
