LED surgical light

ceiling-mountedmobilewall-mounted

Overview

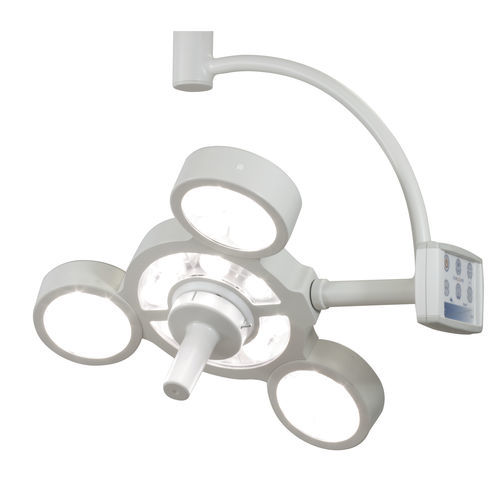

STARLED3 NX is an LED surgical lamp providing cold light with high colour rendering, long lifetime and low energy consumption. It is suitable for operating rooms and a wide range of clinical applications including diagnostics, dental, gynecology, dermatology, general medicine and minimally invasive surgery. The lamp can be supplied with a monitor and with an FHD or 4K camera integrated in the central handle or on a separate arm.

Available configurations

• Ceiling mounted (single, twin dome or combined with SOLED15, SOLED15-F and ACEMSO15F)
• Wall mounted
• Trolley mounted (ABPS battery on demand)
• In combination with monitor and/or video camera

Design and usability
STARLED3 NX is composed of three reflectors producing a well-blended and intense cone of light that can be focused via the control panel. The lamp is compact and ergonomic, easy to position and compatible with laminar flow in the operating room. The ENDO function enables use in endoscopic and minimally invasive procedures. The handle is removable and sterilizable for hygiene; lamp surfaces are designed for easy cleaning.

I-SENSE control panel
The I-SENSE control panel (STANDARD and v2016 versions) is ergonomic and easy-to-clean. With a simple touch it manages the main functions:

• ON/OFF
• Light intensity adjustment
• DoF – Depth of Field for deep illumination
• ENDO – light for endoscopy (minimally invasive surgery)
• SIZE – spot diameter adjustment to focus the operating area
• SYNC (optional) – synchronises controls of combined lamps (e.g., STARLED3 NX double / STARLED5 NX)

ABPS – Rechargeable battery powered system (trolley)
ABPS is a rechargeable battery system compliant with MDR 2017/745 enabling STARLED3 NX to switch automatically from mains to battery power, providing a high-performance mobile unit. It recharges via an automatic charger, requires no specific maintenance and autonomy depends on the battery model. The trolley-integrated battery enclosure dimensions are 560 x 560 x 340 mm. A control panel on the trolley displays residual charge, supply type and recharge status.

Cameras
STARLED3 NX can be supplied with integrated cameras (in the handle) or mounted on a separate arm. Cameras are intended for documentation, intraoperative consultation, education and broadcasting. Available camera modules include:

• AC4K – 1/2.5" Exmor R CMOS, ~8.5 MP effective (4K), 16:9, 20x optical zoom + 12x digital zoom, automatic exposure and multi-format outputs (Full HD to 4K)
• ACFHD – 1/3-type HD CMOS, ~2 MP effective, 16:9, 10x optical zoom + 12x digital zoom, automatic focus and AE control, multi-format outputs (720p/1080p)

Monitor
The lamp can be supplied with an optional surgical monitor to display lighting system and camera images. Monitors are lightweight, compact and optimised for surgical image sharpness and colour accuracy.

Advantages / LED technology features

• High light intensity
• IR-free light beam
• Variable colour temperature (CCT)
• High Colour Rendering Index (high CRI)
• Light beam focusing
• Long life and low power consumption

Technical specifications

• Type: Surgical LED lamp
• Model: STARLED3 NX
• Brand: ACEM
• Light type: LED, cold light, IR-free beam
• Optical system: Three reflectors producing a blended, intense and focusable cone
• Adjustable functions: Intensity, Depth of Field (DoF), ENDO (endoscopy lighting), Spot SIZE, beam focusing
• Control panel: I-SENSE (STANDARD and v2016)
• Configurations: Ceiling, wall, trolley mounted; single or twin dome; combination with SOLED15 / SOLED15-F / ACEMSO15F
• Battery option: ABPS rechargeable trolley system (automatic mains/battery switchover); trolley battery enclosure size 560 x 560 x 340 mm; autonomy depends on battery model
• Camera options: FHD or 4K integrated in handle or on separate arm (AC4K, ACFHD)
• Monitor: Optional surgical monitor for image display and integration
• Applications: Operating room, diagnostics, dental, gynecology, dermatology, general medicine, minor surgery and minimally invasive surgery
• Typical values: CCT 4,500 K; CRI 95; max illuminance up to 130,000 LUX (160,000 LUX optional); power consumption example 69 W; LED life approx. 50,000 hours
