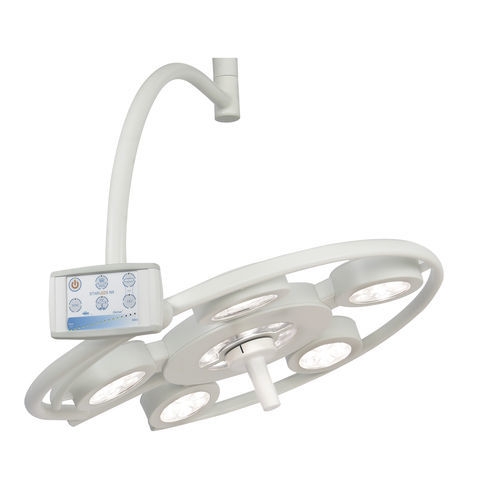

LED surgical light STARLED5 NX

ceiling-mountedveterinaryfor operating rooms

Overview
STARLED5 NX is a surgical LED light designed for operating rooms to deliver homogeneous, shadow‑free cold illumination with high colour rendering and low thermal load. It supports monitor and camera integration (FHD or 4K) either in the central handle or on a separate arm.

Available configurations

• Ceiling-mounted — single dome
• Ceiling-mounted — twin dome
• Ceiling-mounted double combined with STARLED3 NX
• Combined with monitor and/or video camera

Key advantages

• LED technology for multipurpose surgical applications
• High illuminance: standard up to 130,000 LUX (optional up to 160,000 LUX)
• Variable correlated colour temperature (CCT)
• High Colour Rendering Index (CRI)
• IR‑free light beam to minimise thermal load on the surgical field
• Ergonomic lateral handles for easy positioning
• Compatible with laminar flow environments
• Low power consumption and long LED life

I‑SENSE control panel
The I‑SENSE panel (STANDARD and v2016) provides an ergonomic, easy‑to‑clean user interface. With simple touch controls it manages:

• ON/OFF
• Light intensity adjustment
• SIZE — spot diameter adjustment to focus the operating area
• ENDO — endoscopy lighting mode
• DOF — Depth Of Field for deep illumination
• SYNC — optional function to synchronise controls when lamps are combined

Cameras
STARLED5 NX can be supplied with integrated cameras (central handle) or with a camera mounted on a separate arm for documentation, video consultation, educational broadcasts and live transmission from the operating room.

AC4K camera

• 1/2.5" Exmor R CMOS sensor — approx. 8.5 effective megapixels (4× Full HD)
• 16:9 aspect ratio for widescreen monitors
• 20× optical zoom and 12× digital zoom for detail capture
• Automatic settings and automatic exposure control for sharp images
• Multi‑format video outputs from Full HD to 4K

ACFHD camera

• 1/3" HD CMOS sensor — approx. 2 effective megapixels
• 16:9 aspect ratio
• 10× optical zoom and 12× digital zoom
• Auto focus and automatic exposure (AE) control
• Multi‑format outputs: 720p and 1080p

Monitor
Optional monitors are lightweight and compact, designed to ensure high‑definition image display and accurate detail rendering during procedures.

Technical specifications

• Light source: 43 LEDs arranged circularly
• Optical arrangement: 5 reflectors with 7 LEDs each plus 8 LEDs radially around the handle
• Standard illuminance: 130,000 LUX (optional 160,000 LUX)
• Average LED life: approx. 50,000–60,000 hours
• Cold light design to reduce thermal impact
• Ergonomic lateral handles for stable positioning
• Compatible with laminar flow operating rooms
• I‑SENSE control panel (STANDARD and v2016) with ON/OFF, intensity, SIZE, ENDO, DOF, SYNC
• Camera options: AC4K (4K) and ACFHD (Full HD) with optical/digital zoom and automatic exposure/focus
• Available configurations: ceiling single, ceiling twin dome, combined ceiling with STARLED3 NX, or with monitor/camera integration
