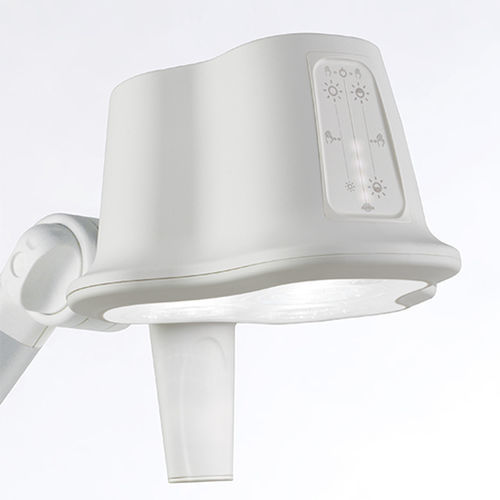

LED examination lamp ACEMST1

veterinarydentalgynecological

Overview
ACEMST1 is a multifunctional medical LED examination lamp designed for diverse clinical environments including dermatology, general medicine, gynecology and dentistry. It provides uniform, IR-free illumination for examinations, diagnostics, cosmetic procedures, first aid, recovery rooms and as a bed head light. The lamp is adaptable to universal applications and is controlled via a precise touch control panel.

Available colours

• Multiple colour and finish options shown in images (custom finishes available)

Available configurations

• Ceiling mounted
• Wall mounted
• Wall mounted with extension arm
• Table mounted
• Rail mounted
• Trolley mounted

Product versions

• ACEMST1.1: Touch control panel — ON/OFF; stepless light intensity adjustment
• ACEMST1.3: Touch control panel — ON/OFF; stepless light intensity adjustment; stepless colour temperature (CCT) adjustment

Advantages

• High light intensity suitable for clinical examinations
• IR-free light beam to avoid tissue heating
• Variable colour temperature (CCT) for optimized visualisation
• High Colour Rendering Index (CRI) for accurate colour perception
• Long LED lifetime and low power consumption

Design & Features
Compact, functional design with a double balancing system that ensures stability and precise positioning during procedures. Wide rotation and movement range facilitate access. Smooth, easy-to-clean and disinfect surface for infection control. Intuitive touch control panel allows accurate adjustment of lamp functions.

Characteristics / Technical specifications

• Model: ACEMST1
• Brand: ACEM
• Intended use: dermatology, general medicine, gynecology, dentistry, diagnostics, cosmetic medicine, first aid, recovery room, bed head light
• Mounting options: ceiling, wall, wall with extension arm, table, rail, trolley
• Control: touch control panel
• Control functions (depending on version): ON/OFF; stepless light intensity adjustment; stepless colour temperature adjustment (ACEMST1.3)
• Lighting technology: LED
• Optical features: IR-free beam; variable CCT; high CRI
• Energy / lifetime: long-life LEDs and low power consumption
• Mechanical: double balancing system for stability; wide rotation and movement range
• Finish: smooth, easy-to-clean and disinfect surface
• Available in multiple colours and finishes
• Documentation: brochures available in multiple languages (referenced on product page)
