Ultrasound imaging examination table H-SU series

hydraulicheight-adjustableTrendelenburg

Overview
Hydraulic, height-adjustable examination tables for mains-independent operation. Equipped with a headrest adjustable in positive and negative directions (head-down position) suitable for sonographic assessment of neck soft tissues. Available in three frame finishes and two widths. Hydraulic actuation via centrally installed foot pump; optional second foot lever available.

Features

• Precision double square guides to prevent rocking and lateral offset during height adjustment.
• Hydraulics operated by a central foot pump; height adjustment possible even with heavy patients (up to 200 kg). Optional additional foot lever for dual-side operation (accessory FPH-10).
• Two upholstery segments (headrest and main section), each 64 mm thick; headrest continuously adjustable up to +/- 30° and lockable with clamping-rod mechanism. Optional gas-spring headrest (KVG) available as factory variant.
• Frame corner gusset plates for increased stability; height mechanism made of lacquered blank steel.
• Chrome-plated crossbars with levelling feet.

Standard version includes

• Levelling feet on chrome-plated crossbars.

Frame colours (standard lacquer)

• Light grey (RAL 7035)
• White aluminum (RAL 9006)
• Pure white (RAL 9010)

Upholstery

• Artificial leather covers, tear-resistant and disinfectant-resistant; standard range VOWAled Pisa (Vowalon).
• Black electrically conductive synthetic leather (MEDISTAT) with equipotential bonding socket available at extra cost (included for operating and multifunction tables).

Images & Colours shown

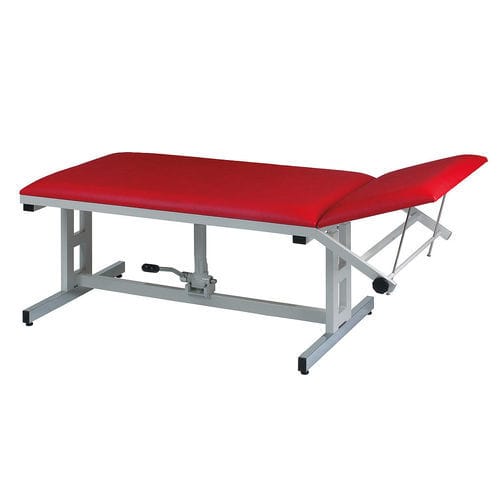

Photos illustrate model H-SU 1065/Y in various colour combinations. Examples: frame RAL 9010 with red upholstery; frame RAL 7035 with grey upholstery. Shown accessories may include paper roll holder (PU-6000), castor set (LR-125), face cutout (GS-1710) and upholstered insert (EfGS).

Accessories & additional equipment (examples)

• FPH-10: Foot lever with transmission shaft for operation from both sides.
• GS-1710 / EfGS: Oval face cutout approx. 205 x 105 mm and padded insert; retrofitting not possible.
• KVG: Gas-spring headrest adjustment as alternative to clamping-rod mechanism; one-hand operation, retrofitting not possible.
• Castor sets Ø75 mm (LR-75) and Ø125 mm (LR-125); central-lock castor system LR/Z-125 (double swivel Ø125 mm) with central locking rods and diagonal foot pedals.
• Standard rails (pairs) in CrNi steel in lengths approx. 400 / 600 / 1000 / 1400 mm for mounting on the upholstery frame (retrofitting not possible).
• Paper roll holders: PU-6000 (650 mm) and PE-8000 (800 mm), chrome-plated, mounted from below on the headboard.
• Other accessories (excerpt): infusion stand, edge/impact protection, positioning aids, mobile base on castors, patient belts, removable or pivoting side guards, shock position/trendelenburg adjustment, wall deflector rings in the four corners.

Technical details (examples)
Table width 650 mm:
Article numbers: H-SU 1065/Y | H-SU 2065/Y | H-SU 3065/Y
Frame: Lacquered / Chrome-plated / Stainless steel
Length (headrest / main): 1,900 mm — 500 / 1,400 mm
Width: 650 mm
Height adjustment: 650 - 850 mm (hydraulic)
Upholstery segments: 2
Upholstery thickness: 64 mm
Headrest adjustment: +/- 30° (clamping rods)
Load capacity: 200 kg

Table width 800 mm:
Article numbers: H-SU 1080/Y | H-SU 2080/Y | H-SU 3080/Y
Frame: Lacquered / Chrome-plated / Stainless steel
Length (headrest / main): 1,900 mm — 500 / 1,400 mm
Width: 800 mm
Height adjustment: 650 - 850 mm (hydraulic)
Upholstery segments: 2
Upholstery thickness: 64 mm
Headrest adjustment: +/- 30° (clamping rods)
Load capacity: 200 kg

Characteristics / technical specifications

• Series: H-SU (variants by width and frame finish).
• Widths available: 650 mm and 800 mm.
• Overall length: 1,900 mm (headrest 500 mm / main 1,400 mm).
• Height adjustment range: 650 – 850 mm (hydraulic, foot pump operation).
• Upholstery: 2 segments, thickness 64 mm each.
• Headrest: continuous adjustment +/- 30°; optional gas spring headrest (KVG).
• Load capacity: 200 kg.
• Frame finishes: lacquered blank steel, chrome-plated blank steel, stainless steel.
• Optional accessories as listed above.
