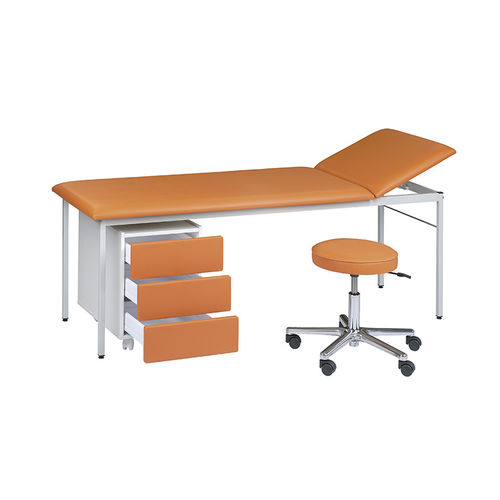

Adult examination table BUD-6265

with adjustable backreston casterswith storage unit

Overview
Examination units combining an examination table with mobile and hanging storage cabinets and appropriate seating. Designed for medical outpatient and clinic environments to keep frequently used materials and aids quickly accessible. Three variants presented: BUD-6265, SSL-6558 and UEH-5865. Components are available individually.

Variants

• BUD-6265
  • Treatment table: ULI-6000
  • Paper roll holder rod between table legs: P-30530
  • Mobile drawer unit with three drawers: HB-580/3 (front panels covered with synthetic leather)
  • Swivel stool: DH-2000
• SSL-6558
  • Examination table: U-1065
  • Base cabinet with two drawers for hanging: HB-580/2
  • Base cabinet with three drawers for hanging: HB-580/3
• UEH-5865
  • Examination table: U-1065
  • Base cabinet with three drawers: US-580/3
  • Base cabinet with two drawers: US-580/2

Technical data
Article number: BUD-6265 | SSL-6558 | UEH-5865
Frame: lacquered
Length (headrest / main section): 1,900 mm · 500 / 1,400 mm
Width: 650 mm (standard)
Heights (no extra charge): 650 mm · 650 / 700 / 750 / 800 mm (variant-dependent)
Upholstery segments: typically 2 sections (variant-dependent)
Upholstery thickness: 47 mm | 64 mm (depending on variant)
Headrest adjustment: +30° (grid) | +40° (clamping rods) | gas spring option (KVG)
Load capacity: 150 kg | 200 kg (depending on variant)
Paper roll holder: available on some variants (e.g. BUD-6265)
Drawer units: 1 | 2 | 3 (variant-dependent); fronts: synthetic leather-covered or melamine-coated
Swivel stool: available on some variants

Accessories & additional options

• HRM-14: Semi-circular roll, foam filling, Ø 200 x 400 mm, synthetic leather cover, with zipper
• HRM-14/Klett: HRM-14 with Velcro fastener
• KKM-16: Head wedge, foam filling, 450 x 400 x 80 / 10 mm, synthetic leather cover, with zipper
• KVG: Headrest adjustment by gas spring, one-hand operation (not retrofittable)
• NF-25 / NF-30: Levelling feet for square steel tube 25 x 25 mm and 30 x 30 mm (set of 4 with impact caps)
• OPS-40/A … OPS-170/A: Standard rails (pairs) in various lengths, CrNi steel, for mounting on the upholstery frame (not retrofittable)
• P-2065: Chrome-plated paper roll holder for mounting on table legs (length 615 mm, Ø 20 x 1 mm)
• PG-220: Patient belt 2,200 x 250 mm for 650 mm wide tables, synthetic leather with Velcro
• RLM-20 / RM-12: Knee roll Ø 180 x 560 mm and neck roll Ø 140 x 400 mm, foam filling, synthetic leather cover, with zipper

Specifications

• Presented article numbers: BUD-6265, SSL-6558, UEH-5865
• Frame finish: lacquered (standard); standard colours: light grey RAL 7035, white aluminum RAL 9006, pure white RAL 9010
• Upholstery: synthetic leather (tear-resistant, disinfectant-resistant); standard example VOWAled Pisa; other colours/manufacturers available
• Optional electrically conductive upholstery (MEDISTAT) with equipotential bonding socket available
• Table widths: standard 650 mm (other widths available, e.g. 800 mm)
• Upholstery configurations: 2 or 3 sections depending on variant
• Upholstery thickness examples: 47 mm, 64 mm (up to 80 mm for special configs)
• Headrest adjustments: grid +30°, clamping rods +40°, or gas spring (KVG)
• Load capacities: typically 150 kg, 200 kg for reinforced variants
• Drawer configurations: 1, 2 or 3 drawers; mounted hanging or on castors
• Accessories: paper roll holders, support rolls, patient belts, rails, levelling feet, stools, head wedges
