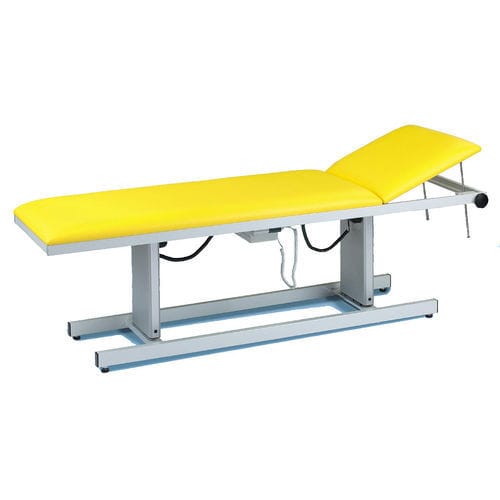

Electric examination table H-U 1065/EE 850

reverse TrendelenburgliftingTrendelenburg

Product overview
The AGA-DUO-LIFT series are electric, height-adjustable 2-section examination tables with electrically driven tilt (Trendelenburg / Anti-Trendelenburg). They are operated via a 6-button hand switch allowing simultaneous adjustment of height and tilt. A nearby floor socket is recommended for power supply. Available upholstery frame finishes: lacquered, chrome-plated or stainless steel. Available widths: 650 mm and 800 mm.

Features

• Two lifting columns with low-voltage electric drives in anodized light metal; smooth operation; transformer control and hand-switch operation.
• 6-button hand switch enabling simultaneous (multitasking) adjustment of height and tilt.
• Trendelenburg and Anti‑Trendelenburg positions up to 11° each when both adjustment paths are fully utilised.
• Available widths and example article numbers:
  • Width 650 mm — H-U 1065/EE 850, H-U 2065/EE 850, H-U 3065/EE 850.
  • Width 800 mm — H-EKG 1080/EE 850, H-EKG 2080/EE 850, H-EKG 3080/EE 850.
• Frame corner gussets and a wide base frame with levelling feet for enhanced stability.
• Upholstery frames in lacquered blank steel, chrome-plated blank steel or stainless steel.
• Two upholstery segments (headrest and main surface), standard thickness 64 mm; headrest continuously adjustable up to +40°, lockable with clamping-rod handle.

Technical details (Table width 650 mm)
Article numbers: H-U 1065/EE 850, H-U 2065/EE 850, H-U 3065/EE 850
Frame finishes: lacquered / chrome / stainless steel (depending on article)
Length (headrest / main): 1,900 mm — 500 / 1,400 mm
Width: 650 mm
Height adjustment: 600 - 850 mm (electric motors)
Trendelenburg / Anti‑Trendelenburg: up to 11° each (electric motors)
Upholstery segments: 2 sections
Upholstery thickness: 64 mm (standard)
Headrest adjustment: +40° (clamping rod)
Load capacity: 150 kg

Technical details (Table width 800 mm)
Article numbers: H-EKG 1080/EE 850, H-EKG 2080/EE 850, H-EKG 3080/EE 850
Frame finishes: lacquered / chrome / stainless steel (depending on article)
Length (headrest / main): 1,900 mm — 500 / 1,400 mm
Width: 800 mm
Height adjustment: 600 - 850 mm (electric motors)
Trendelenburg / Anti‑Trendelenburg: up to 11° each (electric motors)
Upholstery segments: 2 sections
Upholstery thickness: 64 mm (standard)
Headrest adjustment: +40° (clamping rod)
Load capacity: 150 kg

Additional standard equipment and options

• Standard: floor frame with levelling feet.
• Frame lacquer colours (examples): RAL 7035 light grey, RAL 9006 white aluminium, RAL 9010 pure white; high-gloss disinfectant-resistant finish.
• Wide choice of synthetic leather upholstery colours (e.g. VOWAled Pisa / Vowalon); custom colours and alternative upholstery types as variants.
• Electrically conductive black upholstery (MEDISTAT) with equipotential bonding socket available at extra cost.
• Selected accessories: castor sets Ø 75 / 125 mm, central-locking castor system (LR/Z-125), standard rails (various lengths), paper roll holder (P-2065/A for 650 mm, P-2080/A for 800 mm), face cutout with upholstered insert (GS-1710 / EfGS), headrest gas-spring (KVG), pivoting/removable side guards, infusion stand, edge/impact protection, positioning aids, patient belts, wall deflector rings in table corners.

Specifications

• Series: AGA-DUO-LIFT
• Control: 6-button hand switch; simultaneous height and tilt adjustment (multitasking)
• Height adjustment range: 600–850 mm (electromotive)
• Tilt (Trendelenburg / Anti‑Trendelenburg): up to 11° each (electromotive)
• Length overall: 1,900 mm (headrest / main: 500 / 1,400 mm)
• Available widths: 650 mm and 800 mm
• Upholstery: 2 segments; standard thickness 64 mm (85 mm available for certain variants)
• Headrest: continuous adjustment up to +40° (clamping rod) — optional gas-spring (KVG)
• Load capacity: 150 kg
• Electric drives (representative per motor): 230 V, 50/60 Hz, 6.0 A, 240 W; protection IPX6; lifting speed ≈ 16 mm/s; force 2 × 1,000 N
• Frame finishes: lacquered blank steel / chrome-plated blank steel / stainless steel
• Standard included: floor frame with levelling feet
