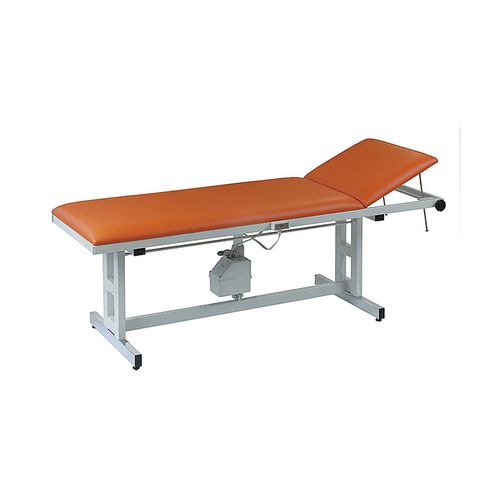

Adult examination table H-U 1065/E

electricheight-adjustablewith adjustable backrest

Overview
The height adjustment by electric motor offers convenience and ease of use. The control of the motor (hand or foot switch) is the easiest and most convenient way of operation. A power outlet (preferably a floor outlet) for connection is desirable in close proximity of the examination table. The examination tables with electromotive height adjustment are available in three frame finishes (lacquered, chrome-plated and stainless steel) as well as two widths (650 mm and 800 mm).

Features

• Basic design: 2-section examination tables as the basic models of the table series in terms of upholstery, structure, dimensions and drilling pattern.
• Precision double square guides to avoid rocking and swinging movements of the lying surface; height adjustment without lateral offset.
• Smooth-running electric motor, maintenance-free and splash-proof; controlled by hand switch or optionally by foot switch.
• Height adjustment range: 650 - 850 mm; suitable for operation by heavier patients (up to 200 kg).
• Adjustment system equipped with a key lock.
• Motor connection values and performance: 230 V, 50/60 Hz, 3.7 A, 850 W, protection class IPX4, speed approx. 11 mm/s, force rating up to 10,000 N.
• Stability and robustness achieved by gusset plates in the frame corners.
• Height adjustment mechanism made of lacquered blank steel.
• Upholstery frame profile options: lacquered blank steel; chrome-plated blank steel; stainless steel.
• Two upholstery segments (headrest and main surface) each 64 mm thick.
• Chrome-plated crossbars with levelling feet for increased resistance to external influences.
• Headrest adjustable continuously up to +40° and lockable by handle with clamping rod mechanism.

Technical details — Table width 650 mm
Article number: H-U 1065/E | H-U 2065/E | H-U 3065/E
Frame: Lacquered | Chrome | Stainless steel
Length (headrest / main section): 1,900 mm | 500 / 1,400 mm
Width: 650 mm
Height adjustment: 650 - 850 mm (electric motor)
Upholstery segments: 2 sections
Upholstery thickness: 64 mm
Headrest adjustment: +40° (clamping rods)
Load capacity: 200 kg

Technical details — Table width 800 mm
Article number: H-EKG 1080/E | H-EKG 2080/E | H-EKG 3080/E
Frame: Lacquered | Chrome | Stainless steel
Length (headrest / main section): 1,900 mm | 500 / 1,400 mm
Width: 800 mm
Height adjustment: 650 - 850 mm (electric motor)
Upholstery segments: 2 sections
Upholstery thickness: 64 mm
Headrest adjustment: +40° (clamping rods)
Load capacity: 200 kg

The standard version includes

• Levelling feet on the chrome-plated crossbars.

Frame colours

• Light grey (RAL 7035)
• White aluminium (RAL 9006)
• Pure white (RAL 9010)

Upholstery and materials

• Artificial/synthetic leather covers characterised by tear resistance, durability, longevity and disinfectant resistance.
• Standard upholstery material referenced as VOWAled Pisa (Vowalon) selection.
• Electrically conductive synthetic leather available as an option (black, with equipotential bonding socket on the frame) at additional cost.

Accessories & additional options (excerpt)
Article No. | Description
GS-1710 / EfGS | Face cutout in the headboard upholstery, oval approx. 205 x 105 mm; upholstered insert for closing the face cutout approx. 200 x 100 mm. Retrofitting not possible.
KVG | Headrest adjustment via gas pressure spring (instead of clamping rod), one-hand operation, release button on the headboard cushion. Retrofitting not possible.
LR-75 / LR-125 | Set of castors Ø 75 mm or Ø 125 mm; four swivel castors, two fully lockable.
LR/Z-125 | Central locking castor system, double swivel castors Ø 125 mm; central locking with linked rods and diagonally arranged foot pedals (table ready/move vs table locked). Retrofitting not possible.
OPS-40/A / OPS-60/A / OPS-100/A / OPS-140/A / OPS-170/A | Standard rails (pair) of various lengths (approx. 400 / 600 / 1,000 / 1,400 / 1,700 mm), made of CrNi steel for mounting on upholstery frame; retrofitting not possible.
P-2065/A / P-2080/A | Paper roll holder for table widths 650 mm and 800 mm; chrome-plated, with brackets and roll holder bar.
Additional available accessories (not exhaustive): infusion stand, all-around edge/impact protection, positioning aids, mobile base on castors, patient belts, removable or pivoting side guards, shock position / Trendelenburg adjustment, wall deflector rings in table corners.
Product variants & examples
Multiple article numbers and variants are offered (different frame finishes, widths, accessories and special requests). Examples shown on the page include models such as H-U 1065/E, H-U 2065/E, H-EKG 1080/E and related equipment variants.

Caractéristiques / spécifications techniques

• Available table widths: 650 mm and 800 mm.
• Tabletop length: 1,900 mm (headrest / main section: 500 / 1,400 mm).
• Height adjustment range: 650 - 850 mm (by electric motor).
• Load capacity: 200 kg (standard models).
• Upholstery segments: 2 sections; upholstery thickness: 64 mm.
• Headrest adjustment: continuous up to +40° (clamping rods) or optional gas-spring headrest.
• Frame finishes: lacquered blank steel, chrome-plated blank steel, stainless steel.
• Height adjustment mechanism material: lacquered blank steel; crossbars chrome-plated and fitted with levelling feet.
• Motor specifications: 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, speed approx. 11 mm/s, rated force approx. 10,000 N.
• Locking: key lock on adjustment system; button lock on adjustment system (deactivated by double tap as illustrated in video).
