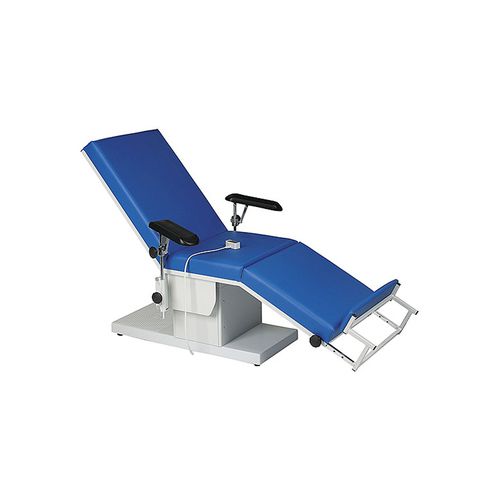

Electric dialysis chair BSL-1065/G

3-sectionwith footrestreclining

Overview
The blood donations chairs and dialysis chairs are used in the transfusion or infusion area. Both lounge chair variants are equipped with adjustment options for the shock position. A blood donation is usually completed after about a quarter of an hour; faster shock position adjustment using a gas pressure spring is preferred over electric motor adjustment to quickly bring collapsing patients into the shock position. On the blood donation chair the adjustment of the entire upholstered frame, including the two armrests fixed with fastening clamps, is carried out using a gas pressure spring triggered via a foot lever located under the leg section on the floor frame and easily accessible from three sides. Dialysis chairs are designed for longer treatments and therefore feature more comfortable padding and an electric motor for tilt adjustment controlled via a hand switch (alternative foot switch available). The dialysis chair also includes an adjustable relaxation footrest to prevent calf muscle cramps and to support patient feet.

Features

• The armrests can be adjusted and fixed in height, inclination and direction of rotation and thus optimally adapted to the arm position of the donor or patient.
• The base frame, equipped with leveling feet, ensures a secure stand.
• Shock- and scratch-resistant covers on the column and base frame are easy to clean and hygienic.
• Upholstery thicknesses of the three segments:
  • 64 mm for the blood donation chair (Article No.: BSL-1065/G)
  • 90 mm for the dialysis chair (Article No.: DLS-1065/E)
• The maintenance-free and extremely quiet electric drive used in the dialysis chair is controlled via a hand switch (alternatively - at no extra charge - via a foot switch). The adjustment system is equipped with a key lock. Connection values per motor: 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, v = 11 mm/s, 10,000 N.
• Dialysis chair includes a relaxation footboard which can be adjusted by grid to the patient’s height or leg length.

Standard configuration

• A pair of armrests that can be adjusted and fixed in height, inclination and direction of rotation.
• A pair of fastening clamps.
• A base frame with leveling feet.
• Relaxation footboard (only for DLS-1065/E).

Technical data (table)
| Blood donation chair | Dialysis chair
Article number | BSL-1065/G | DLS-1065/E
Frame | Lacquered | Lacquered
Length (Head/seat/foot sections) | 1,820 mm — 800 / 480 / 540 mm | 1,820 mm — 800 / 470 / 550 mm
Width | 650 mm (880 mm with fastening clamps) | 650 mm (880 mm with fastening clamps)
Seat height | 550 mm | 580 mm
Upholstery segments | 3 sections | 3 sections
Upholstery thickness | 64 mm | 90 mm
Shock position adjustment | continuous (gas pressure spring) | continuous (electric motor)
Load capacity | 150 kg | 200 kg

Accessories & additional options (selection)

• HRM-14 / HRM-14/Band / HRM-14/Klett — semi-circular or strap/Velcro neck roll, foam filling (Ø 200 x 400 mm).
• KKM-16 — head wedge, foam filling, dimensions 450 x 400 x 80/10 mm (L x W x H).
• LR-75 / LR-125 — set of castors Ø 75 mm or Ø 125 mm; four swivel castors, two lockable.
• OPS-40/A / OPS-60/A — standard rails (pair) for mounting accessories (CrNi steel), approx. lengths 400 mm or 600 mm.
• PU-6000 — chrome-plated paper roll holder for mounting on backrest upholstery frame (bar length 615 mm, Ø 20 x 1 mm).
• RLM-20 / RM-12 — knee roll (Ø 180 x 560 mm), neck roll (Ø 140 x 400 mm), round rolls with foam filling.
• RUF-D/B — adjustable back and foot sections using gas pressure springs (continuous adjustment to lying position).
• TS-450 — extension table approx. 450 x 300 mm, rotatable and swivel, usable as base or shelf.

Image galleries — depicted colours & accessories

• BSL-1065/G shown with frame: light grey RAL 7035, upholstery: black and accessories RUF-D/B, PU-6000, HRM-14/Band, LR-75 (for chair height 650 mm).
• DLS-1065/E shown with frame: light grey RAL 7035, upholstery: atoll.

Caractéristiques / spécifications techniques

• Article numbers: BSL-1065/G (blood donation chair) and DLS-1065/E (dialysis chair).
• Frame finish: lacquered, available in light grey (RAL 7035), white aluminum (RAL 9006), pure white (RAL 9010) — disinfectant resistant, glossy.
• Overall length: 1,820 mm (head/seat/foot section dimensions differ by model).
• Width: 650 mm (880 mm with fastening clamps).
• Seat height: 550 mm (BSL-1065/G) — 580 mm (DLS-1065/E).
• Upholstery: three segments; thickness 64 mm (BSL) or 90 mm (DLS); synthetic leather covers (tear resistant, disinfectant resistant).
• Shock position adjustment: gas pressure spring (BSL-1065/G) or electric motor (DLS-1065/E).
• Load capacity: 150 kg (BSL-1065/G) — 200 kg (DLS-1065/E).
• Electric motor (DLS-1065/E) connection values: 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, speed 11 mm/s, force 10,000 N.
