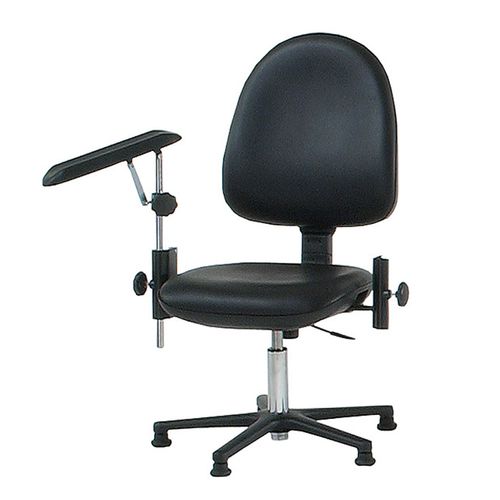

Non-adjustable blood donor chair BS series

not specifiedbariatricergonomic

Product overview
Blood collection chairs from AGA Sanitätsartikel are designed for medical practices, clinics and healthcare facilities. Frames are mainly made from flat-oval steel tube profiles. Ergonomically shaped seat, back and arm supports are covered in disinfectant-resistant synthetic leather. Fixed seat height and reinforced construction offer defined seating geometry for blood sampling and infusion procedures.

Versions available

• Article No.: BES-1046 — seat width 460 mm, load capacity up to 150 kg.
• Article No.: BES-1046/INF — seat width 460 mm, load capacity up to 150 kg; includes a pair of mounting clamps and an infusion pole with 4-hook bottle cross.
• Article No.: BES-1062 — seat width 620 mm, load capacity up to 300 kg (suitable for bariatric patients).
• Article No.: BES-1062/INF — seat width 620 mm, load capacity up to 300 kg; includes a pair of mounting clamps and an infusion pole with 4-hook bottle cross.

Features

• Frame: flat-oval steel tube profiles with durable lacquer finish; four legs with floor-protecting end caps.
• Padded seat, back and arm supports with ergonomic contours for patient comfort during sampling.
• Fixed seat height: 500 mm.
• Cushion thickness: seat 64 mm, backrest 40 mm.
• Overall widths: 650 mm (BES-1046 / BES-1046/INF), 810 mm (BES-1062 / BES-1062/INF).
• Distance between wedge-shaped arm supports: 460 mm (BES-1046 variants) or 620 mm (BES-1062 variants).

Accessories & additional options (selection)

• INF-30170 — Infusion holder in CrNi steel, infusion rod length 1,700 mm, Ø 18 mm, bottle cross with four hooks.
• Pair of mounting clamps — included with INF variants.

Upholstery
Synthetic leather coverings are tear-resistant and disinfectant-resistant. A selection of standard coverings is available. Electrically conductive antistatic upholstery (black) is available at extra cost and can be supplied with equipotential bonding on the frame.

Technical specifications

• Article numbers: BES-1046, BES-1046/INF, BES-1062, BES-1062/INF.
• Frame: flat-oval steel tube profiles, lacquered finish.
• Seat height: 500 mm (fixed).
• Seat dimensions (W x D): 460 x 550 mm (BES-1046 variants) / 620 x 490 mm (BES-1062 variants).
• Seat upholstery thickness: 64 mm.
• Backrest dimensions (W x H): 410 x 250 mm (BES-1046 variants) / 480 x 550 mm (BES-1062 variants).
• Backrest upholstery thickness: 40 mm.
• Armrest dimensions (W x D x H): 90 x 470 x 80 / 30 mm.
• Load capacity: 150 kg (BES-1046 variants) / 300 kg (BES-1062 variants).
• INF variants: include pair of mounting clamps and infusion pole with 4-hook bottle cross.
