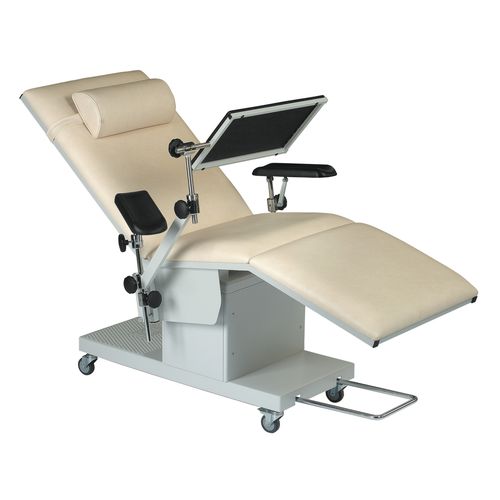

Pneumatic blood donor chair BSL-1065/G

electric3 sectionsreclining

Product overview
The blood donations chairs and dialysis chairs are used in the transfusion or infusion area. Both lounge chair variants are equipped with an adjustable shock position. Blood donation chairs use a gas pressure spring triggered via a foot lever for fast shock position adjustment. The gas spring adjustment acts on the entire upholstered frame including the two armrests fixed with fastening clamps and is accessible from three sides. Dialysis chairs feature more comfortable padding and an electric motor for tilt adjustment controlled by a hand switch (alternative foot switch available). Patients can change their lying/sitting position using the hand switch, including selecting the shock position. The dialysis chair includes a relaxation footrest that can be adjusted by grid to the patient’s leg length to prevent calf cramps.

Features

• The armrests can be adjusted and fixed in height, inclination and direction of rotation and thus optimally adapted to the arm position of the donor or patient.
• The base frame, equipped with leveling feet, ensures a secure stand.
• The shock- and scratch-resistant covers on the column and base frame are easy to clean and kept hygienically clean.
• Upholstery thicknesses of the three segments:
  • 64 mm for the blood donation chair (Article No.: BSL-1065/G)
  • 90 mm for the dialysis chair (Article No.: DLS-1065/E)
• The maintenance-free and extremely quiet electric drive used in the dialysis chair is controlled via a hand switch (alternatively at no extra charge via a foot switch). The adjustment system is equipped with a key lock. Connection values per motor: 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, v = 11 mm/s, 10,000 N.
• Should calf muscle cramps occur, patients can brace themselves against the footboard that is included with the dialysis chair. The footrest can be adjusted by grid to the patient’s body size or leg length.

Standard configuration

• A pair of armrests adjustable and fixable in height, inclination and rotation.
• A pair of fastening clamps.
• A base frame with leveling feet.
• A relaxation footboard (only for DLS-1065/E).

Frame colours (standard)

• Light grey (RAL 7035)
• White aluminum (RAL 9006)
• Pure white (RAL 9010)

Upholstery
The covers are synthetic leather characterized by tear resistance, durability, longevity and resistance to disinfectants. A range of upholstery colours is available and electrically conductive synthetic leather in black is optionally available (with equipotential bonding socket on the frame) at additional cost.

Accessories & additional options (selection)

• HRM-14 / HRM-14/Band / HRM-14/Klett – semi-circular neck rolls (foam filling), dimensions Ø 200 x 400 mm; strap or Velcro variants available.
• KKM-16 – head wedge, foam filling, dimensions 450 x 400 x 80/10 mm.
• LR-75 / LR-125 – set of castors Ø 75 mm or Ø 125 mm; four swivel castors (two fully lockable).
• OPS-40/A / OPS-60/A – standard rails (pair), approx. length 400 mm or 600 mm, made of CrNi steel for mounting on the backrest frame to attach additional accessories from operating/multi-function tables area (retrofitting not possible).
• PU-6000 – chrome-plated paper roll holder for mounting on the backrest upholstery frame.
• RLM-20 / RM-12 – knee roll (Ø 180 x 560 mm) and neck roll (Ø 140 x 400 mm), foam-filled rolls.
• RUF-D/B – adjustable back and foot sections using gas pressure springs (continuous adjustment to lying position).
• TS-450 – extension table approx. 450 x 300 mm, rotatable and swivel, can be used as base or shelf.

Product variants & galleries
The category shows two main articles: the blood donation chair Article No. BSL-1065/G (photos show frame light grey RAL 7035, upholstery black) and the dialysis chair Article No. DLS-1065/E (photos show frame light grey RAL 7035, upholstery atoll). Image galleries demonstrate a range of accessories and configurations (adjustable foot and back sections RUF-D/B, paper roll holder PU-6000, neck roll HRM-14/Band, castors LR-75, armrests with sliding pads).

Technical data
Article number | Blood donation chair | Dialysis chair
BSL-1065/G | DLS-1065/E
Frame | Lacquered | Lacquered
Length (Head/seat/foot sections) | 1,820 mm — 800 / 480 / 540 mm | 1,820 mm — 800 / 470 / 550 mm
Width | 650 mm (880 mm with fastening clamps) | 650 mm (880 mm with fastening clamps)
Seat height | 550 mm | 580 mm
Upholstery segments | 3 sections | 3 sections
Upholstery thickness | 64 mm | 90 mm
Shock position adjustment | continuous (gas pressure spring) | continuous (electric motor)
Load capacity | 150 kg | 200 kg

Characteristics / spécifications techniques

• Primary models shown: BSL-1065/G (blood donation chair) and DLS-1065/E (dialysis chair).
• Shock position: BSL-1065/G via gas pressure spring (foot lever), DLS-1065/E via electric motor with hand switch (optional foot switch).
• Upholstery segmentation: 3 segments; thickness 64 mm (BSL) / 90 mm (DLS).
• Seat heights: 550 mm (BSL-1065/G) and 580 mm (DLS-1065/E).
• Overall length: 1,820 mm (both); specified head/seat/foot section lengths as per technical table.
• Frame finish: coloured lacquer (standard RAL shades listed), disinfectant resistant.
• Electric motor for DLS-1065/E: 230 V, 50/60 Hz, 3.7 A, 850 W, IPX4, speed approx. 11 mm/s, thrust 10,000 N; key lock fitted.
• Load capacities: 150 kg (BSL) / 200 kg (DLS).
