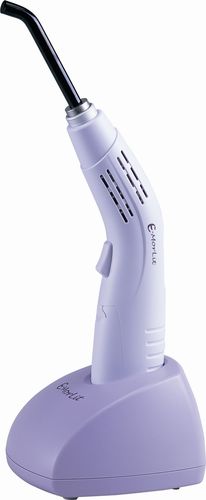

Dental office curing light E-Morlit

dentalfor resinLED

Product overview
The E-Morlit dental LED curing light integrates a 5W LED to deliver fast, controlled polymerisation for light-cured dental composites. The device is designed for chairside dental procedures with an autoclavable light guide for infection control.

Key features

• Instant curing within 10 seconds with the 5W output (effective curing depth: 4.2 mm)
• Maximum light intensity up to 1600 mW/cm²
• Three curing modes (FAST, RAMP, PULSE) and six preset curing times (5, 10, 20, 30, 40, 50 s) for quick adjustment
• LED lifetime > 20,000 hours and autoclavable light guide for clinical reliability

Operation and mode presets

• F: FAST – continuous full power
• R: RAMP – power increases gradually during the first 2 seconds, then full power until the end
• P: PULSE – cycles with 0.2 s interval and 0.8 s full-power pulses

Usage notes
PULSE mode may require longer exposure times for some composites; always follow the composite manufacturer's curing instructions.

Durability and reliability
LED useful life exceeds 20,000 hours. The autoclavable light guide supports infection-control workflows. The device operates quietly for comfortable chairside use.

User's manual
User's manual available for E-Morlit 5W and E-Morlit 7W (see document versions on the product page).

Caractéristiques / spécifications techniques

• Model: E-Morlit
• LED power output: 5W
• Instant curing: within 10 seconds (effective area: 4.2 mm depth)
• Maximum light intensity: up to 1600 mW/cm²
• Curing modes: FAST, RAMP, PULSE
• PULSE mode detail: 0.2 second interval with 0.8 second full-power pulses
• Preset curing times: 5, 10, 20, 30, 40, 50 seconds
• LED life: over 20,000 hours
• Autoclavable light guide for infection control
• Operation: silent and comfortable
