Dental office curing light 10W

dentalcordlessbuilt-in

Overview

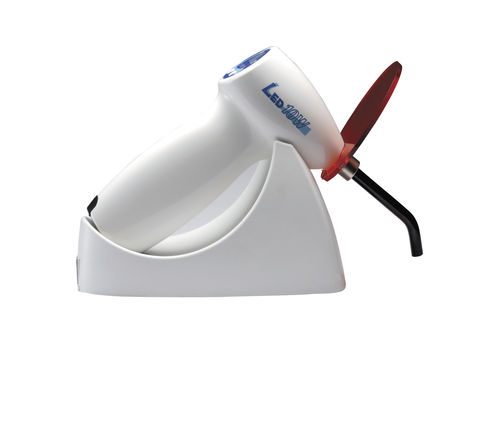

The LED 10W dental curing light delivers high-intensity LED output for fast, consistent polymerization of dental resins. Designed for clinical use, the unit supports both cordless and corded operation and features an autoclavable light guide for infection control.

Key features

• Instant curing within ~3 seconds at 10W for an effective depth of 4 mm
• Maximum light intensity up to 2,700 mW/cm²
• Three curing modes: Fast (F), Ramp (R), Pulse (P)
• Four power output settings: 10W / 7W / 5W / 3W for workflow flexibility
• Intuitive interface with timer display and audible beep
• LED useful life > 20,000 hours and LED temperature protection
• Autoclavable light guide; supports cordless (wireless) or corded (wired) use
• Built-in charger for convenient charging

Three built-in curing modes
F (Fast): immediate full power for time-saving curing.
R (Ramp): gradual power increase during the first 2 seconds, then full power.
P (Pulse): full power with 0.2-second pause every second; pulse mode may require longer exposure times to achieve full resin conversion—follow resin manufacturer recommendations.

Power output selections and operation guide
Four selectable power levels allow adaptation to material and clinical needs. Use 10W for rapid curing at 4 mm depth (~3 seconds). Use lower outputs (3W) for low-temperature, prolonged curing when indicated by the restorative material.

Technical specifications

• Product type: LED dental curing light
• Power output options: 10W / 7W / 5W / 3W
• Maximum light intensity: up to 2,700 mW/cm²
• Effective curing depth: 4 mm (10W, ~3 seconds)
• Curing modes: Fast (F), Ramp (R), Pulse (P)
• Pulse mode behavior: 0.2-second pause every 1 second
• LED useful life: over 20,000 hours
• Light guide: autoclavable
• User interface: timer display and beep alert
• Operation: cordless (wireless) or corded (wired)
• Built-in charger
• LED temperature protection to prevent overheating
