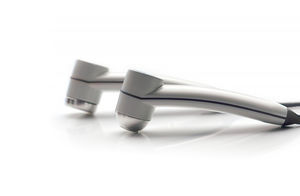

Linear-array ultrasound transducer GU-1

small parts

Product description
The GU-1 ultrasound head has a 1 cm² front area and delivers acoustic waves at 1 MHz or 3 MHz. It is designed for targeted therapeutic ultrasound on small body areas, including standard ultrasound therapy, LIPUS (low-intensity pulsed ultrasound) and combined therapy modes.

Features

• product code: A-AS-AST-GU1
• LIPUS mode: available
• water resistance: IPX7
• continuous / pulse emission: supported
• lack of contact detection: present
• US head temperature control: present
• US head sensitivity calibration: present

Ultrasound therapy technical parameters
acoustic working frequency: 1 MHz, 3 MHz
acoustic working frequency - switch mode: 1/3 MHz (switching frequency every 8 s)
acoustic working frequency - LIPUS mode: 1 MHz
total area of the head front: 1 cm²
effective radiation area: 0.7 cm²

General technical parameters
accessory dimensions without connection cable: 5.5 x 3.7 x 18.4 cm
weight: max 0.5 kg

Compatible with

• PhysioGo.Lite SONO
• PhysioGo.Lite COMBO

Technical specifications

• Model: GU-1
• Product code: A-AS-AST-GU1
• Frequencies: 1 MHz and 3 MHz (switch mode 1/3 MHz, switching every 8 s)
• LIPUS: 1 MHz mode available
• Head front area: 1 cm²
• Effective radiation area: 0.7 cm²
• Water resistance: IPX7
• Emission modes: continuous and pulse
• Safety features: lack of contact detection, US head temperature control, US head sensitivity calibration
• Dimensions (without cable): 5.5 x 3.7 x 18.4 cm
• Weight: max 0.5 kg
• Compatible controllers: PhysioGo.Lite SONO, PhysioGo.Lite COMBO
