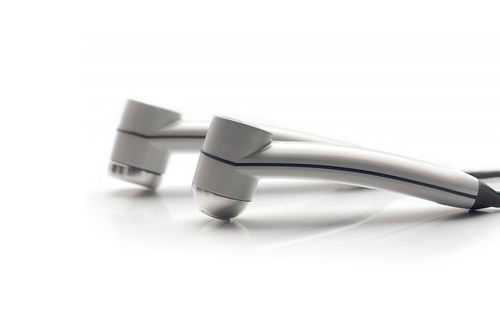

Linear-array ultrasound transducer GS-4 cm2

Product overview
The GS-4 cm² ultrasound therapy head is designed for therapeutic ultrasound applications and is compatible with controllers from the Sonaris, Etius and PhysioGo product lines. The head operates at two selectable frequencies (1 MHz and 3.5 MHz); note that devices from the Etius line and Sonaris M support only the 1 MHz frequency.

Features

• Product code: A-AS-AST-GS4WH
• Water-resistant ultrasound head (IPX7)
• Continuous and pulsed emission modes
• Ultrasound head contact control: measures effective treatment time
• Adjustable head sensitivity (calibration per clinical needs)

Ultrasound therapy technical parameters
Operating frequency: 1 MHz and 3.5 MHz
Effective radiation area: 4 cm²

General technical parameters
Accessory dimensions (without connection cable): 5 x 3.7 x 18.4 cm
Weight: 0.8 kg

Compatible controllers

• Etius ULM
• PHG 200A
• PHG 300A
• PHG 601C
• PHG 701C
• PHG 701I

Technical specifications

• Model / denomination: GS-4 cm²
• Product code: A-AS-AST-GS4WH
• Operating frequencies: 1 MHz and 3.5 MHz (note: Etius line and Sonaris M support only 1 MHz)
• Effective radiation area: 4 cm²
• Emission modes: continuous and pulsed
• Water resistance rating: IPX7
• Ultrasound head contact control: measures effective treatment time
• Head sensitivity: adjustable / calibration per clinical needs
• Dimensions (without cable): 5 x 3.7 x 18.4 cm
• Weight: 0.8 kg
• Compatible controllers: Sonaris series, Etius ULM, PhysioGo family (examples: PHG 200A, PHG 300A, PHG 601C, PHG 701C, PHG 701I)
