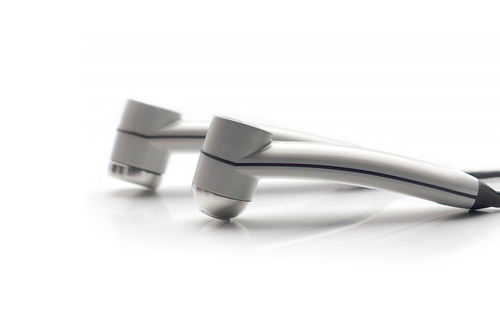

Linear-array ultrasound transducer GS-1

Product overview
The GS-1 ultrasound therapy head (effective area 1 cm²; frequencies 1 MHz and 3.5 MHz) is compatible with controllers from the Sonaris, Etius and PhysioGo lines. The transducer supports dual-frequency operation; with some controllers (Sonaris M and certain Etius models) operation is limited to 1 MHz.

Features

• Product code: A-AS-AST-GS1WH
• Water resistance: IPX7
• Emission modes: continuous and pulsed
• Contact control: measures effective treatment time
• Calibratable head sensitivity

Ultrasound therapy technical parameters

• Operating frequencies: 1 MHz and 3.5 MHz
• Effective radiation area: 1 cm²

General technical parameters

• Dimensions (without connection cable): 5.5 x 3.7 x 18.4 cm
• Weight: 0.8 kg

Compatible with

• Sonaris M (limited to 1 MHz)
• Sonaris S
• Etius U
• Etius ULM
• PHG 200A
• PHG 300A
• PHG 601C
• PHG 701C
• PHG 701I

Characteristics / technical specifications

• Model name: GS-1
• Product code: A-AS-AST-GS1WH
• Operating frequencies: 1 MHz and 3.5 MHz (dual-frequency; limited to 1 MHz on some controllers)
• Effective radiation area: 1 cm²
• Water resistance rating: IPX7
• Emission modes: continuous and pulsed
• Contact control: measures effective treatment time
• Head sensitivity: calibratable
• Dimensions (without connection cable): 5.5 x 3.7 x 18.4 cm
• Weight: 0.8 kg
