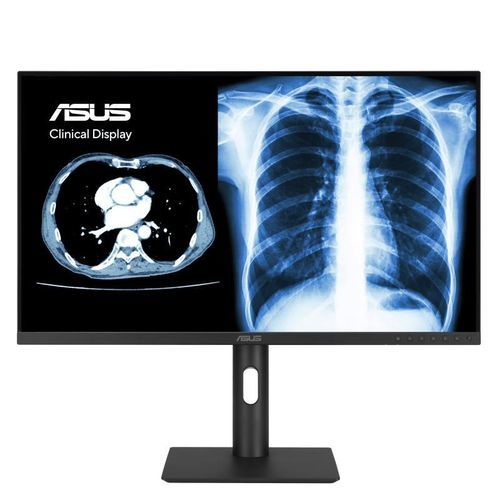

Medical display MH2441A

2560 × 144023.8"LCD

Overview
ASUS MH2441A is a 23.8-inch (viewable) clinical monitor featuring a 3.6MP (2560 x 1440) frameless IPS panel with AGLR (Anti-Glare, Low-Reflection) and 178° viewing angles. The display is factory calibrated to DICOM Part 14 GSDF and supports ASUS Auto Calibration to maintain long-term DICOM accuracy with JND < 10%. The front surface and hotkeys receive a long-lasting antibacterial ionic silver treatment. Multiple I/O options include DisplayPort (daisy-chain), HDMI, USB-C and an integrated USB hub. The ergonomic stand provides tilt, swivel, pivot and height adjustments tailored for clinical reading workflows.

Key Features

• 23.8-inch 3.6MP (2560 x 1440) IPS frameless panel
• AGLR coating with Eye Care+ to reduce visual fatigue during long reading sessions
• DICOM Part 14 GSDF compliance and DICOM Preset modes (0 lux / 50 lux / 100 lux) with ambient-light-aware curve switching
• ASUS Auto Calibration and hardware calibration to preserve DICOM accuracy over time
• Factory-calibrated for Just-Noticeable Difference (JND) < 10%
• Comprehensive connectivity: USB-C (DisplayPort Alt Mode + 15W power out), HDMI v2.0, DisplayPort 1.4 (in/out) with daisy-chain, USB 3.2 hub
• Ergonomic adjustments: tilt, swivel, pivot (90°) and height for optimal viewing angles
• Long-lasting antibacterial ionic silver treatment on monitor head and hotkeys (ISO 22196 tested)
• Compliant with medical and safety standards: IEC 62368-1, IEC 60601-1, IEC 60601-1-2, AAPM TG270, IEC62563-1, ISO13485

Advanced Panel and Visual Performance

• 178° wide viewing angles for consistent contrast and reliable image interpretation from varying positions
• 3.6MP resolution provides ~77% more pixels than Full HD for sharper medical images and increased workspace
• Frameless design suited for near-seamless multi-display configurations
• Flicker-free and low blue light performance certified by TÜV Rheinland

DICOM and Calibration

• Factory-precise calibration to DICOM Part 14 GSDF for reliable grayscale and stable gradation rendering
• ASUS DICOM Preset offers multiple ambient brightness DICOM curves and auto-detection via ambient light sensor
• ASUS Auto Calibration stores calibration profiles in the monitor’s internal scaler IC, enabling calibration independent of connected systems

Connectivity & Workflow

• USB-C: supports video (DisplayPort signal) and up to 15W power output to connected devices via a single cable
• Two DisplayPort 1.4 (in/out) enable DisplayPort daisy-chain setups for multi-monitor configurations
• HDMI v2.0 input for legacy video sources
• Built-in USB 3.2 hub: bottom Type-A ports plus additional rear Type-A and Type-C ports for peripherals and charging
• Earphone jack for audio monitoring

Viewing Options & Productivity

• Picture-by-Picture (PbP): display multiple input sources side-by-side with independent color modes (sRGB, DICOM, User)
• Picture-in-Picture (PiP): overlay a secondary input source in a resizable window
• Switchable color & monochrome modes with positive/negative film options to assist X‑ray reading and similar modalities

Antibacterial Treatment
The monitor head and hotkeys are treated with an ionic silver antibacterial coating that inhibits bacterial adhesion up to 99.9%. Treatment and testing follow ISO 22196 protocols with reported antibacterial activity R > 2 (99.9% reduction) for tested strains including Escherichia coli and Staphylococcus aureus.

Ergonomics

• Height adjustment: 0–130 mm
• Tilt: -5° to +23°
• Pivot: -90° to +90° (portrait rotation)
• Swivel: -30° to +30°

Environmental & Packaging

• Eco-friendly packaging made of at least 80% recyclable cardboard
• Designed to minimize weight and volume for transport efficiency
• Use of eco-friendly materials including ~85% post-consumer recycled (PCR) plastics and mercury-free panels
• Power-saving Eco-mode and hard power-off to minimize standby consumption

Technical specifications

• Model: MH2441A
• Visible screen size: 23.8-inch (24-inch class)
• Panel type: IPS, frameless
• Native resolution: 3.6MP (2560 x 1440)
• Viewing angle: 178° (H) / 178° (V)
• Panel coating: AGLR (Anti-Glare, Low-Reflection)
• DICOM: Part 14 GSDF compliant; DICOM Preset modes (0 lux / 50 lux / 100 lux) with ambient-light detection
• Calibration: ASUS Auto Calibration; factory calibrated to JND < 10%
• Connectivity: USB-C (DisplayPort Alt Mode + 15W power), 2 x DisplayPort 1.4 (in/out), HDMI v2.0, USB 3.2 hub, earphone jack
• Multiview: PiP and PbP support
• Ergonomics: Height 0–130 mm; Tilt -5° ~ +23°; Pivot -90° ~ +90°; Swivel -30° ~ +30°
• Antibacterial: Ionic silver treatment on monitor head & hotkeys; ISO 22196 tested; reported R > 2 (99.9% reduction)
• Compliance & standards: IEC 62368-1, IEC 60601-1, IEC 60601-1-2, AAPM TG270, IEC62563-1, ISO13485
• Packaging: ≥80% recyclable cardboard
