Medical display HA2441A
diagnosticmedical imaging2560 × 1440

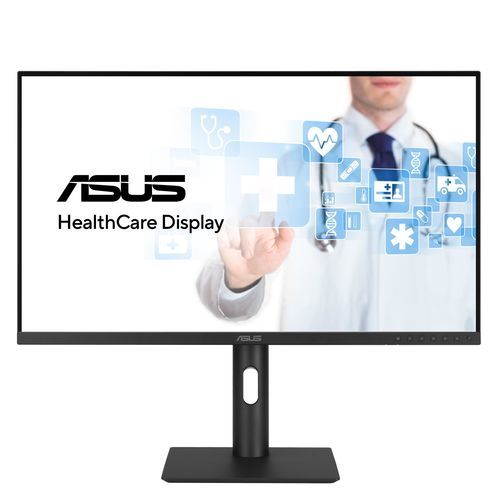

Medical display - HA2441A - ASUS Computer International - diagnostic / medical imaging / 2560 × 1440
Medical display - HA2441A - ASUS Computer International - diagnostic / medical imaging / 2560 × 1440
Medical display - HA2441A - ASUS Computer International - diagnostic / medical imaging / 2560 × 1440 - image - 2
Medical display - HA2441A - ASUS Computer International - diagnostic / medical imaging / 2560 × 1440 - image - 3
Medical display - HA2441A - ASUS Computer International - diagnostic / medical imaging / 2560 × 1440 - image - 4
Medical display - HA2441A - ASUS Computer International - diagnostic / medical imaging / 2560 × 1440 - image - 5
Medical display - HA2441A - ASUS Computer International - diagnostic / medical imaging / 2560 × 1440 - image - 6
Medical display - HA2441A - ASUS Computer International - diagnostic / medical imaging / 2560 × 1440 - image - 7
Medical display - HA2441A - ASUS Computer International - diagnostic / medical imaging / 2560 × 1440 - image - 8
Medical display - HA2441A - ASUS Computer International - diagnostic / medical imaging / 2560 × 1440 - image - 9
Medical display - HA2441A - ASUS Computer International - diagnostic / medical imaging / 2560 × 1440 - image - 10
Medical display - HA2441A - ASUS Computer International - diagnostic / medical imaging / 2560 × 1440 - image - 11
Add to favorites
Compare this product
Go to the ASUS Computer International website for more information

Characteristics

Applications
medical, medical imaging, diagnostic
Resolution
2560 × 1440
Display size
23.8"
Technology
LCD, LED-backlit
Options
anti-glare, antibacterial
Aspect ratio
16:9
Input
HDMI, DisplayPort
Viewing angle

178 °

Height

Max.: 13 cm
(5.1 in)

Min.: 0 cm
(0 in)

Description

Overview
  • 23.8-inch 3.6MP (2560 x 1440) frameless IPS panel with 178° viewing angles for clinical imaging and multi-source workflows
  • Anti-Glare, Low-Reflection (AGLR) surface with Eye Care+ features for reduced eye strain during extended use
  • Compliant with DICOM Part 14 GSDF for consistent grayscale rendering in diagnostic applications
  • DICOM Preset modes and automatic ambient-light compensation to maintain image accuracy in variable lighting
  • ASUS Auto Calibration ensures sustained DICOM accuracy across systems
  • Factory calibrated to ensure Just-Noticeable Difference (JND) < 10%
  • Multiple I/O including DisplayPort with daisy-chain, HDMI, USB-C and integrated USB hub for flexible connectivity
  • Ergonomic stand with tilt, swivel, pivot and height adjustments to support clinical viewing needs
  • Proprietary long-lasting antibacterial treatment on monitor head and hotkeys to inhibit microbial growth
  • Complies with IEC 62368-1, IEC 60601-1-2, AAPM TG270, IEC62563-1 and ISO 13485


Advanced panel and imaging features
  • 3.6MP IPS frameless panel delivers ~77% more pixels than Full HD for improved anatomical detail and side-by-side review
  • 178° wide viewing angle (H/V) for consistent contrast and accurate image assessment from varied viewing positions
  • AGLR coating; TÜV Rheinland certified flicker-free and low blue light performance to support prolonged clinical use
  • Frameless design optimized for near-seamless multi-display configurations


DICOM and calibration
  • Factory-precise calibration to meet DICOM® Part 14 GSDF for stable grayscale and diagnostic consistency
  • DICOM Preset Mode with selectable ambient brightness settings (0 lux, 50 lux, 100 lux) and ambient light sensor for automated curve application
  • Auto Calibration stores color parameter profiles on the monitor’s internal scaler IC, preserving calibration across hosts and OS
  • Just-Noticeable Difference (JND) < 10% to ensure smooth gradation and uniformity


Long-lasting antibacterial treatment
  • Proprietary ionic silver antibacterial treatment on monitor head and hotkeys reduces bacterial adhesion (tested per ISO 22196)
  • Treatment registered with U.S. EPA and authorized under EU BPR (proprietary)


Connectivity & workflow
  • Comprehensive I/O: USB-C (DisplayPort signal + up to 15W power), 2× DisplayPort 1.4 (in/out with daisy-chain), HDMI 2.0, integrated USB 3.2 hub and earphone jack
  • USB hub layout: two front-bottom Type-A ports for quick access; additional Type-A and Type-C ports on rear for expanded connections
  • Supports Picture-by-Picture (PbP) and Picture-in-Picture (PiP) with individual window color modes (sRGB, DICOM, User)


Practical design and ergonomics
  • Ergonomic stand with height (0–130 mm), tilt (-5° to +23°), swivel (-30° to +30°) and pivot (-90° to +90°) adjustments
  • 90° pivot to portrait orientation for X-ray, long-format images or document review


Compliance, safety and environmental
  • Compliance: IEC 62368-1, IEC 60601-1-2, AAPM TG270, IEC62563-1, ISO 13485
  • Eco features: power-saving Eco-mode and hard power-off option to reduce energy consumption
  • Packaging: ≥80% recyclable cardboard; designed for reduced weight and volume
  • Materials: use of up to ~85% post-consumer recycled (PCR) plastics and mercury-free panels


Caractéristiques / spécifications techniques
  • Model: HA2441A
  • Brand: ASUS
  • Display size (viewable): 23.8-inch
  • Native resolution: 3.6MP — 2560 × 1440
  • Panel type: IPS (frameless)
  • Pixel density: 3.6 megapixels (≈77% more pixels than conventional Full HD)
  • Surface treatment: Anti-Glare, Low-Reflection (AGLR)
  • Viewing angle: 178° (H) / 178° (V)
  • DICOM: Compliant with DICOM Part 14 GSDF; ASUS DICOM Preset with multiple ambient settings; DICOM_Auto (scheduled firmware)
  • Calibration: Factory-calibrated; ASUS Auto Calibration; color profiles stored on internal scaler IC
  • Just-Noticeable Difference (JND): < 10%
  • Antibacterial treatment: Ionic silver on monitor head and hotkeys; ISO 22196 tested; claimed reduction vs untreated surface
  • Connectivity: USB-C (DisplayPort + up to 15W), 2× DisplayPort 1.4 (in/out, daisy-chain), HDMI 2.0, USB 3.2 hub (Type-A/Type-C), earphone jack
  • Multiview: Picture-by-Picture (PbP) and Picture-in-Picture (PiP)
  • Ergonomics: Height 0–130 mm; Tilt -5°–+23°; Pivot -90°–+90°; Swivel -30°–+30°
  • Certifications: IEC 62368-1, IEC 60601-1-2, AAPM TG270, IEC62563-1, ISO 13485
  • Environmental: Eco-mode, recyclable packaging (≥80% cardboard), PCR plastics (~85%), mercury-free panel
  • Special features: Frameless design for multi-display setups; TÜV Rheinland-tested flicker-free and low blue light; factory DICOM calibration
