Medical imaging display HA2741A

radiologymedicaldiagnostic

Overview

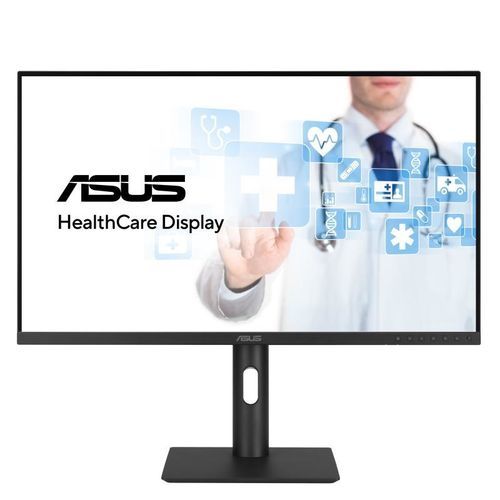

ASUS HA2741A is a 27-inch medical display engineered for diagnostic and clinical imaging. It features a 3.6MP (2560 × 1440) frameless IPS panel with Anti-Glare, Low-Reflection (AGLR) coating, factory DICOM® Part 14 GSDF calibration and multiple DICOM Preset modes. The monitor supports ASUS Auto Calibration for sustained DICOM accuracy, ensures Just-Noticeable Difference (JND) < 10%, and includes a proprietary antibacterial ionic silver treatment on the monitor head and hotkeys. Comprehensive I/O includes USB-C, HDMI, DisplayPort (daisy-chain) and an integrated USB hub for clinical workstation integration.

Key features

• 27-inch 3.6MP (2560 × 1440) frameless IPS panel with 178° viewing angles
• Anti-Glare, Low-Reflection (AGLR) coating with Eye Care+ (TÜV certified: flicker-free, low blue light)
• DICOM Part 14 GSDF compliance; factory calibration for medical grayscale accuracy
• DICOM Preset with ambient-specific curves (0/50/100 lux) and ambient light sensor for auto-adaptive brightness (DICOM_Auto firmware rollout planned)
• ASUS Auto Calibration — hardware calibration that stores color profiles in the monitor’s internal scaler IC for consistent results across systems
• Factory-verified grayscale: JND < 10%
• Antibacterial ionic silver treatment on monitor head and hotkeys (ISO 22196 tested; R > 2 → ≈99.9% reduction)
• Connectivity: DisplayPort 1.4 IN/OUT (daisy-chain), HDMI 2.0, USB‑C (DisplayPort alt mode + 15W power out), built-in USB 3.2 hub and earphone jack
• Picture-by-Picture (PbP) and Picture-in-Picture (PiP) for multi-source review workflows
• Ergonomic stand with tilt, swivel, pivot and 0–130 mm height adjustment for portrait/landscape orientation
• Compliance: IEC 62368-1, IEC 60601-1-2, AAPM TG270, IEC62563-1, ISO13485
• Eco design: power-saving Eco-mode, hard power-off switch, recyclable packaging (≥80% cardboard) and use of PCR plastics

Use cases & workflow
Designed for radiology, diagnostic review stations and clinical workspaces requiring accurate grayscale reproduction, stable long-term calibration and hygienic surfaces. USB‑C enables single-cable video and device power; DisplayPort daisy‑chain supports multi-monitor setups; PbP/PiP facilitates side-by-side comparison of multiple inputs for reading and reporting workflows.

Long-lasting antibacterial treatment
The monitor head and hotkeys receive an ionic silver antibacterial coating that reduces bacterial adhesion (ISO 22196 test by independent lab). The treatment is registered with relevant authorities (registered with the U.S. EPA and authorized under EU BPR as noted by ASUS).

Factory-precise DICOM and calibration
Each unit is factory calibrated for DICOM Part 14 GSDF compliance and smoother grayscale gradations (JND < 10%). ASUS Auto Calibration writes the LUT to the internal scaler IC so the calibration persists across different OS and devices. DICOM Preset provides ambient-specific DICOM curves and automatic ambient-adaptive settings via the integrated ambient light sensor.

Technical specifications

• Model: HA2741A
• Brand: ASUS
• Display size: 27-inch
• Resolution: 3.6MP (2560 × 1440)
• Panel type: IPS
• Viewing angle: 178° (H/V)
• Coating: Anti-Glare, Low-Reflection (AGLR)
• DICOM: Part 14 GSDF compliant; DICOM Preset (0/50/100 lux); DICOM_Auto firmware rollout planned
• Calibration: Factory calibrated; ASUS Auto Calibration (hardware stores profile on internal scaler IC)
• Grayscale performance: Just-Noticeable Difference (JND) < 10%
• Antibacterial treatment: Ionic silver on monitor head and hotkeys; ISO 22196 tested (R > 2 → ≈99.9% reduction)
• Connectivity: USB‑C (DisplayPort alt mode, 15W power out), DisplayPort 1.4 IN/OUT (daisy-chain), HDMI 2.0, USB 3.2 hub (two Type‑A bottom; additional Type‑A and Type‑C on back), earphone jack
• Multi-source: Picture-by-Picture (PbP), Picture-in-Picture (PiP)
• Ergonomics: Height adjustment 0–130 mm; Tilt -5° to +23°; Swivel -30° to +30°; Pivot -90° to +90°
• Compliance / Standards: IEC 62368-1; IEC 60601-1-2; AAPM TG270; IEC62563-1; ISO13485
• Eye care & safety: TÜV certified flicker-free and low blue light
• Environmental & packaging: Eco-mode, hard-switch off; packaging made with ≥80% recyclable cardboard; use of PCR plastics
• Power (USB‑C): video via DP signal and 15W power output
• Product security update support period: 3 years (until 31/12/2026) as stated
