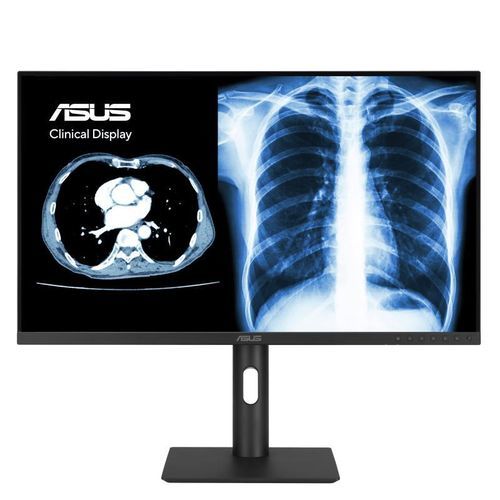

Medical display MH2741Adiagnosticmedical imagingradiology
Add to favorites
Compare this product
Characteristics
- Applications
- medical, medical imaging, diagnostic, radiology
- Resolution
- 2560 × 1440
- Display size
- 27"
- Technology
- LCD, LED-backlit
- Options
- anti-glare, monochrome, antibacterial
- Aspect ratio
- 16:9
- Input
- HDMI, DisplayPort
- Viewing angle
178 °
Description
Overview
Key features (detailed)
Use cases
Technical specifications
- 27-inch 3.6MP (2560 x 1440) frameless IPS panel with 178° wide viewing angle and Anti-Glare, Low-Reflection (AGLR) surface with Eye Care+ to reduce eye strain.
- Factory calibrated and compliant with DICOM Part 14 GSDF for accurate medical grayscale rendering.
- ASUS Auto Calibration (hardware calibration) maintains long-term DICOM accuracy and auto-compensates the DICOM curve for changing ambient light.
- Just-Noticeable Difference (JND) < 10% for smooth grayscale gradations.
- Proprietary antibacterial ionic silver (Ag+) treatment on monitor head and hotkeys (ISO 22196 tested; prevents bacterial adhesion up to 99.9%).
- Comprehensive connectivity: USB-C (DisplayPort signal + up to 15W power out), HDMI 2.0, DisplayPort 1.4 IN/OUT with daisy-chain (MST), built-in USB 3.2 hub (multiple Type-A and Type-C ports), earphone jack.
- Ergonomic stand with height (0–130 mm), tilt (-5° to +23°), swivel (-30° to +30°) and pivot (-90° to +90°) adjustments; supports portrait orientation.
- PiP (Picture-in-Picture) and PbP (Picture-by-Picture) multi-source viewing; switchable color & monochrome modes (Normal / Positive Film / Negative Film).
- Frameless design for nearly seamless multi-display installations; energy-efficient features and eco-friendly packaging (≥ 80% recyclable cardboard).
- Standards & certifications: IEC 62368-1, IEC 60601-1, IEC 60601-1-2, AAPM TG270, IEC 62563-1, ISO 13485.
Key features (detailed)
- Panel and image quality: 3.6MP resolution (~77% more pixels than Full HD) for detailed medical imagery and improved multitasking.
- AGLR: anti-glare, low-reflection coating certified for flicker-free and low-blue-light performance.
- DICOM Preset: multiple ambient brightness presets (0 lux, 50 lux, 100 lux) and automatic ambient detection to apply appropriate DICOM curves.
- Auto Calibration: hardware-based calibration stores color parameter profiles on the monitor’s scaler IC so calibration is retained independently of connected host OS/software.
- Antibacterial treatment: ionic silver (Ag+) applied to monitor front and hotkeys; ISO 22196 tested; registered with U.S. EPA and authorized under EU BPR per manufacturer statements.
- Connectivity details: USB-C supports DisplayPort signaling and up to 15W power output; DisplayPort 1.4 IN/OUT enables MST daisy-chain; HDMI 2.0 input; bottom-located USB 3.2 hub with two Type-A ports and additional Type-A and Type-C on the rear.
- Viewing modes: color and monochrome modes with positive/negative film options to assist X-ray reading; on-screen dot-to-dot presentation to simulate multiple resolutions.
- Ergonomics: precise adjustments — height 0–130 mm; tilt -5° to +23°; pivot -90° to +90°; swivel -30° to +30° for optimal workstation setup.
Use cases
- Clinical image review and diagnosis requiring DICOM-compliant grayscale accuracy and long-term stability.
- Multi-display medical workstations (frameless design + DisplayPort daisy-chain for seamless arrays).
- Healthcare environments needing hygienic surfaces (antibacterial-treated monitor surfaces) such as hospitals, clinics and imaging centers.
Technical specifications
- Model: MH2741A
- Brand: ASUS
- Display size: 27-inch
- Resolution: 3.6MP (2560 x 1440)
- Panel type: IPS; 178° wide viewing angle
- Surface: Anti-Glare, Low-Reflection (AGLR)
- DICOM: Part 14 GSDF compliant; DICOM Preset (0 / 50 / 100 lux + ambient auto-detection)
- Calibration: ASUS hardware Auto Calibration; factory calibrated to ensure JND < 10%
- Antibacterial treatment: ionic silver (Ag+) on monitor head and hotkeys; ISO 22196 tested
- Connectivity: USB-C (DisplayPort signal, up to 15W power output), DisplayPort 1.4 IN/OUT (daisy-chain), HDMI 2.0, USB 3.2 hub (multiple Type-A and Type-C), earphone jack
- Multi-view: Picture-in-Picture (PiP), Picture-by-Picture (PbP)
- Ergonomic adjustments: Height 0–130 mm; Tilt -5° ~ +23°; Pivot -90° ~ +90°; Swivel -30° ~ +30°
- Design: Frameless for multi-display setups
- Standards & compliance: IEC 62368-1, IEC 60601-1, IEC 60601-1-2, AAPM TG270, IEC 62563-1, ISO 13485
- Environmental/packaging: packaging ≥ 80% recyclable cardboard; energy-efficient Eco-mode
