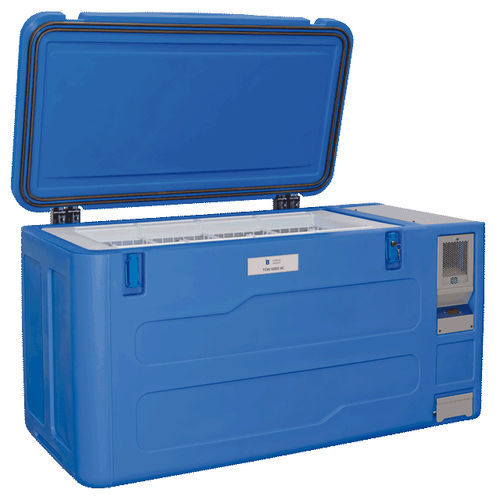

Vaccine refrigerator TCW4000AC
robustcorrosion-resistantelectric

Vaccine refrigerator - TCW4000AC - B Medical Systems - robust / corrosion-resistant / electric
Vaccine refrigerator - TCW4000AC - B Medical Systems - robust / corrosion-resistant / electric
Vaccine refrigerator - TCW4000AC - B Medical Systems - robust / corrosion-resistant / electric - image - 2
Vaccine refrigerator - TCW4000AC - B Medical Systems - robust / corrosion-resistant / electric - image - 3
Vaccine refrigerator - TCW4000AC - B Medical Systems - robust / corrosion-resistant / electric - image - 4
Vaccine refrigerator - TCW4000AC - B Medical Systems - robust / corrosion-resistant / electric - image - 5
Add to favorites
Compare this product
Go to the B Medical Systems website for more information

Characteristics

Applications
for vaccines
Protection level
robust, corrosion-resistant
Power source
electric
Other characteristics
with natural refrigerant, low energy consumption
Capacity

249 l
(65.78 gal)

Temperature range

5 °C
(41 °F)

Width

1,625 mm
(64 in)

Depth

78 cm
(31 in)

Height

91.5 cm
(36 in)

Weight

148 kg
(326.3 lb)

Description

Product overview
  • Vaccine refrigerator with 249 L gross volume (8.79 cu ft)
  • Set temperature: +5°C
  • Vaccine storage capacity: 240 L
  • Certifications: EMC directive 2014/30/EC | Low voltage 2014/35/EC
  • Freeze protection level: Grade A
  • Climate class (ambient temperature range): Hot zone (+43°C)
  • Energy source: AC


Innovative technology
  • Green technology: very low power consumption and environmentally friendly refrigerant (R600a)
  • External temperature display and real-time web visualization
  • Simple one-button operation
  • Automatic drain water evaporation


Resistance to harsh environment
  • Designed for operation in tropical conditions
  • Rotomoulded body construction: rust-free and extremely robust
  • Humidity control to prevent condensation inside the cabinet


Safety and traceability
  • High insulation
  • Silicone gaskets and lockable clasps for tight closing and restricted access
  • Audio-visual alarm system with remote transmission
  • Remote temperature monitoring solution including a data logger and a digital platform


Technical specifications
  • Gross volume: 249 L | 8.79 cu ft
  • Vaccine storage capacity: 240 L
  • Set temperature: +5°C
  • Climate class: Hot zone (+43°C)
  • Certifications: EMC directive 2014/30/EC | Low voltage 2014/35/EC
  • External dimensions (HxWxD): 915 x 1625 x 780 mm | 36.02 x 63.98 x 30.71 in
  • Net weight: 148 kg | 326.28 lb
  • Shipping weight: 183 kg
  • Frequency: 50-60 Hz
  • Supply voltage: 220-240V
  • Refrigerant type: Natural R600a
  • Materials: Polyethylene
  • Cool down: 20 h at 43°C
  • Hold over time: 77 h 18 min at +43°C
  • Energy consumption /24h (stable running): 0.85 kWh/24h at 43°C
  • Energy source: AC
  • Freeze protection level: Grade A
  • Product type: Vaccine refrigerator
