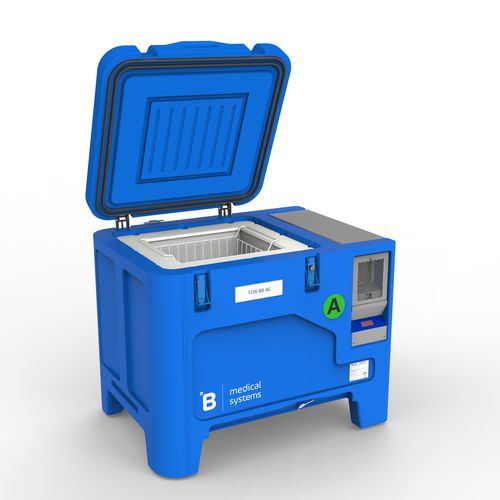

Vaccine refrigerator TCW 80 AC
uprightelectriclow energy consumption

Vaccine refrigerator - TCW 80 AC - B Medical Systems - upright / electric / low energy consumption
Vaccine refrigerator - TCW 80 AC - B Medical Systems - upright / electric / low energy consumption
Vaccine refrigerator - TCW 80 AC - B Medical Systems - upright / electric / low energy consumption - image - 2
Vaccine refrigerator - TCW 80 AC - B Medical Systems - upright / electric / low energy consumption - image - 3
Vaccine refrigerator - TCW 80 AC - B Medical Systems - upright / electric / low energy consumption - image - 4
Vaccine refrigerator - TCW 80 AC - B Medical Systems - upright / electric / low energy consumption - image - 5
Vaccine refrigerator - TCW 80 AC - B Medical Systems - upright / electric / low energy consumption - image - 6
Vaccine refrigerator - TCW 80 AC - B Medical Systems - upright / electric / low energy consumption - image - 7
Add to favorites
Compare this product
Go to the B Medical Systems website for more information

Characteristics

Applications
for vaccines
Configuration
upright
Power source
electric
Other characteristics
low energy consumption, with natural refrigerant
Capacity

Max.: 83.4 l
(22.03 gal)

Min.: 81 l
(21.4 gal)

Temperature range

Max.: 4 °C
(39.2 °F)

Min.: 4 °C
(39.2 °F)

Height

Max.: 89.2 cm
(35.1 in)

Min.: 89.2 cm
(35.1 in)

Width

Max.: 1,020 mm
(40.2 in)

Min.: 1,020 mm
(40.2 in)

Depth

Max.: 78 cm
(31 in)

Min.: 78 cm
(31 in)

Weight

87 kg
(191.8 lb)

Description

Overview
  • Vaccine refrigerator with 83.4 L gross volume and 81 L vaccine storage capacity.
  • Set temperature: +4°C.
  • Designed for hot ambient conditions up to +43°C and AC operation.


Key features
  • Gross volume: 83.4 L; Vaccine storage capacity: 81 L.
  • Freeze protection: Grade A; Climate class: Hot zone (+43°C).
  • Supply voltage: 110-240V AC, 50-60 Hz; Energy consumption: 1.16 kWh/24h at 43°C.


Innovative technology
  • Integrated automatic voltage stabilization (90–290 V) with protective relay.
  • Low energy consumption and natural refrigerant R600a.
  • 5 years international warranty on parts and labour.


Resistance to harsh environment
  • Rotomoulded polyethylene body: corrosion-free and robust construction.
  • Designed for tropical operation with humidity control to prevent condensation.
  • Holdover performance: 72h09 min at +43°C; Cool down time: 9 days.


Safety and traceability
  • Strong insulation and silicone gaskets with lockable clamps for restricted access.
  • Audio-visual alarm with remote transmission.
  • Remote temperature monitoring solution included (RTMD data logger and digital platform).


Technical specifications
  • Gross volume: 83.4 L.
  • Vaccine storage capacity: 81 L.
  • Set temperature: +4°C.
  • Climate class: Hot zone (+43°C).
  • Certifications: EMC directive 2014/30/EC | EU MDD Class I | Low voltage 2014/35/EC.
  • External dimensions (HxWxD): 892 x 1020 x 783 mm.
  • Net weight: 87 kg; Shipping weight: 111 kg.
  • Frequency: 50-60 Hz; Supply voltage: 110-240V AC.
  • Refrigerant: Natural R600a; Materials: Polyethylene.
  • Remote monitoring: RTMD included.
  • Cool down time: 9 days; Hold over time: 72h09 min at +43°C.
  • Energy consumption /24h (stable): 1.16 kWh/24h at 43°C.
  • Energy source: AC; Freeze protection level: Grade A; Product type: Vaccine refrigerator.
