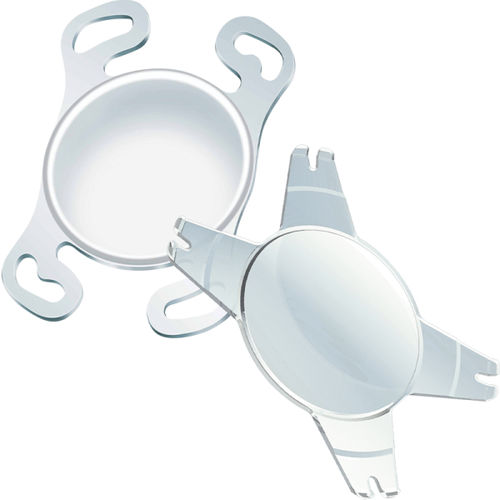

Monofocal intraocular lens Akreos®

polyhydroxyethylmethacrylate

Overview
Akreos® AO60 and MI60L are aspheric hydrophilic acrylic intraocular lenses developed for microincision cataract surgery, offering a range of powers and geometries to support precise centration and stability.

Key features

• Optical design delivers quality of vision and contrast sensitivity according to published references
• High flexibility enables implantation through incisions as small as 1.8 mm
• Three overall lengths and a four‑point haptic configuration for predictable fit, centration and rotational stability
• Equi‑biconvex optic and low refractive index material to minimize reflected light

Technical data
Model | Recommended Starting A-Constant | Overall Diameter | Diopter Powers
AO60 | 118.5* | 11.0 mm (+0 to +15 D); 10.7 mm (+15.5 to +22 D); 10.5 mm (+22.5 to +30 D) | +0 D to +9 D in 1.0 D steps; +10 D to +30 D in 0.5 D steps
MI60L | 119.1* | 11.0 mm (+0 to +15 D); 10.7 mm (+15.5 to +22 D); 10.5 mm (+22.5 to +30 D) | +0 D to +9 D in 1.0 D steps; +10 D to +30 D in 0.5 D steps
*A-constants are optical biometry estimates only. It is recommended that each surgeon develop his or her own values.

Optic body diameter / Delivery systems
Optic body diameter (Model AO60) | 6.2 mm (+0 to +9 D); 6.0 mm (+10 to +30 D)
Optic body diameter (Model MI60L) | 6.2 mm (+0 to +15 D); 6.0 mm (+15.5 to +22 D); 5.6 mm (+22.5 to +30 D)
Delivery systems | VIS100; AI-28; INJ100 (varies by model)

Specifications

• Series / Name: Akreos®
• Available models: AO60, MI60L
• Recommended starting A-constants: AO60 = 118.5*; MI60L = 119.1* (*optical biometry estimates)
• Overall diameters by power: 11.0 mm (low powers), 10.7 mm (mid powers), 10.5 mm (high powers) depending on model
• Diopter range and increments: +0 D to +9 D in 1.0 D steps; +10 D to +30 D in 0.5 D steps
• Incision size: as small as 1.8 mm
• Optic shape: aspheric
• Material (optic and haptics): hydrophilic acrylic with UV blocker
• Refractive index at 35°C: 1.458
• Optic body diameters (AO60): 6.2 mm (+0 to +9 D); 6.0 mm (+10 to +30 D)
• Optic body diameters (MI60L): 6.2 mm (+0 to +15 D); 6.0 mm (+15.5 to +22 D); 5.6 mm (+22.5 to +30 D)
• Delivery systems referenced: VIS100, AI-28, INJ100 (model dependent)
• Design notes: optimized flexibility for microincision implantation; three lengths for fit; four‑point haptic configuration for centration and stability; equi‑biconvex optic and low refractive index to reduce reflections

References / Notes
1. Jorge L. Alió, MD, PhD, David P. Piñero , MSc, Dolores Ortiz, PhD, Raúl Montalbán, OD. Clinical outcomes and postoperative intraocular optical quality with a microincision aberration-free aspheric intraocular lens. J Cataract Refract Surg 2009; 35:1548-1554.
2. Akreos MICS DFU.
3. Izzet Can, Tamer Takmaz, Yelda Yildiz, Hasan Ali Bayhan, Gulizar Soyugelen, Basak Bostanci. Coaxial, microcoaxial, and biazial microincision cataract surgery. J Cataract Refract Surg 2010; 36:740-746.
4. Marcony R. Santhiago, Marcelo V. Netto, Jackson Barreto Jr, Beatriz A. F. Gomes, Adriana Mukai, Ana Paula Calil Guermandi, Newton Kara-Junior. Wavefront Analysis, Contrast Sensitivity, and Depth of Focus After Cataract Surgery With Aspherical Intraocular Lens Implantation. American Journal of Ophthalmology, March 2010, Vol. 149, No. 3.
5. Phillip J. Buckhurst, James S. Wolffsohn, Shehzad A. Naroo, Leon N. Davies. Rotational and centration stability of an aspheric intraocular lens with a simulated toric design. J Cataract Refract Surg 2010; 36:1523-1528.
6. Data on file: Recommended incision size memo.
7. Eric JC et al. Analysis of postoperative glare and intraocular lens design. J Cataract Refract Surg. 2001; 27:614-21.
