Toric intraocular lens IC-8®

presbyopiaastigmatismpolymethylacrylate

Overview

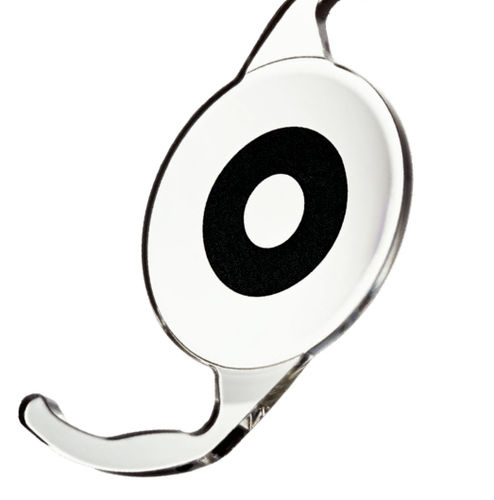

The IC-8® Apthera™ IOL is a small-aperture, presbyopia-correcting intraocular lens that provides extended depth of focus via a wavefront-filtering aperture design. By selectively filtering defocused light rays, IC-8® Apthera™ IOL supports a continuous range of vision from near to far while maintaining image clarity.

Highlights

• Broad visual range: continuous vision from near to distance without pronounced transitional "blurry zones".
• Extended depth of focus: small-aperture wavefront-filtering design achieves a seamless range of focus.
• Everyday vision performance: monofocal-like distance outcomes with improved intermediate and near vision.

Clinical and Performance Benefits

• Enhanced surgical outcomes: engineered to provide functional vision at near, intermediate and far distances.
• High patient satisfaction potential: reduces transitional blur, facilitating routine activities with fewer visual distractions.
• Versatile refractive performance: effective in eyes with up to 1.5 D of corneal astigmatism.
• Optimized clarity: sharp imaging and binocular contrast sensitivity comparable to monofocal lenses in varying illumination.

Design and Technology

• Central aperture concept: wavefront-filtering aperture focuses higher-quality light to the retina while attenuating unfocused rays.
• Small-aperture EDOF technology: provides continuously extended depth of focus for a smooth transition across distances.
• Carbon Black Filterring™: PVDF component with carbon black filter ring to reduce glare and incorporate UV-blocking function.
• Monofocal-derived platform: hydrophobic acrylic optic and haptic materials for familiar surgical handling and implantation.

Surgical Strategy
The IC-8® Apthera™ IOL is typically implanted monocularly with a monofocal or monofocal toric IOL in the fellow eye. A planned slight myopic target (approximately −0.75 D) in the IC-8® Apthera™ eye combined with emmetropia in the fellow eye can produce monofocal-like distance vision with enhanced intermediate and near vision and maintain binocular monofocal-like contrast sensitivity.

Technical Data (table)
Model — IC-8® Apthera™ IOL
Material (Optic and Haptic) — Hydrophobic acrylic, UV-blocking
Powers — +10.0 D through +30.0 D in 0.5 D increments
Optic Type — One-piece; biconvex, anterior aspheric surface
Optic Diameter (ØB) — 6.0 mm
Overall Diameter (ØT) — 12.5 mm
Optic Edge Design — 360° posterior square edge
Haptic Design — Modified C-loop haptic with 5° angulation
Refractive Index — 1.483 at 35°C and 589 nm
Filterring™ Component Material — Polyvinylidene fluoride (PVDF) with carbon black
Filterring Component Outer Diameter — 3.23 mm
Filterring Component Inner Diameter (Aperture) — 1.36 mm
Biometry — Optical
A-Constant — 120.5
Surgeon Factor — 2.64
Anterior Chamber Depth (ACD) — 6.42

References and Notes
References include the IC-8® Apthera™ IOL Directions for Use, keratometry database analyses and internal data on file.

Specifications / technical characteristics

• Model: IC-8® Apthera™ IOL
• Material: Hydrophobic acrylic, UV-blocking (optic and haptic)
• Power range: +10.0 D to +30.0 D (0.5 D increments)
• Optic diameter: 6.0 mm
• Overall diameter: 12.5 mm
• Optic edge: 360° posterior square edge
• Haptic design: Modified C-loop, 5° angulation
• Refractive index: 1.483 (35°C, 589 nm)
• Filterring™ component: PVDF with carbon black; outer diameter 3.23 mm; inner aperture 1.36 mm
• A-Constant: 120.5; Surgeon Factor: 2.64
• Biometry: optical; ACD: 6.42
