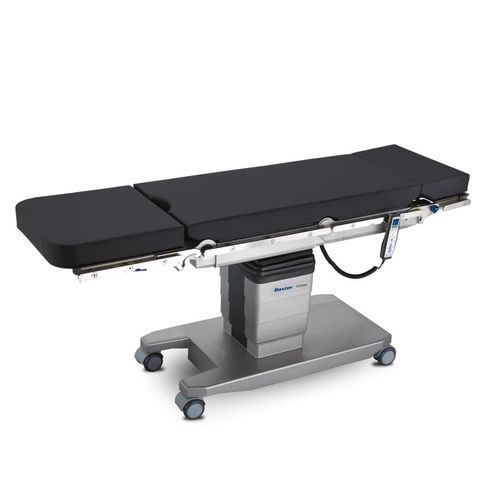

Universal operating table TS7000

radiologyelectricmechanical

Overview
The TS7000 electromechanical surgical table features a synchronized leveling system and wide articulation ranges to support surgical access and allow teams to return patients to a level position. Designed for intuitive operation, the TS7000 helps clinical teams focus on patient care.

Key Benefits

• Safety: Collision monitoring and overload protection safeguard patients.
• Access: Slim column design maximizes staff access to the patient.
• Versatility: Display remote provides feedback for each articulation and supports expandable procedure configurations.
• Usability: Coupling point system confirms safe attachment of components.
• Imaging: Radiolucent tabletop offers up to 18 in (46 cm) longitudinal shift for a maximized radiolucent area.

Features

• Emergency mechanical override unlocks the table for movement during power interruptions.
• Synchronized leveling restores all articulated components to a level position.
• Sensor-controlled anti-collision prevents the tabletop from contacting the floor or base, even in extreme Trendelenburg.
• Stabilization technology automatically levels and locks the table on uneven surfaces; fifth wheel enables patient transport and table reorientation.
• Two-part tabletop with two motor-driven joint pairs for leg and back sections and a rigid hook coupling point.
• Electric movement adjustment configurable via remote control; column keypad available as alternative.
• Display remote and column control panel share icons, colors and shapes for intuitive operation.

Typical Use / Design Notes
The table is designed to accommodate evolving surgical requirements with expandable capabilities and a slim column to maximize staff access while maintaining safety features such as overload protection and sensor-controlled collision avoidance.

Technical specifications

• Model: TS7000 (electromechanical operating table)
• Maximum patient weight capacity: 1000 lb (454 kg)
• Maximum table weight including attached tabletop sections: 661 lb (300 kg)
• Radiolucent longitudinal shift: up to 18 in (46 cm)
• Two motor-driven joint pairs for leg and back sections
• Rigid hook coupling point on tabletop
• Synchronized leveling system to return tabletop to level position
• Anti-collision prevention and overload protection (sensor-controlled)
• Emergency mechanical override for power interruptions
• Electric movement adjustment with remote control required for full functionality; column keypad available as alternative
• Slim column design for optimal patient access
