Conical dental implant BEGO Semados® RSXPro CC

conicalscrewangled

Product

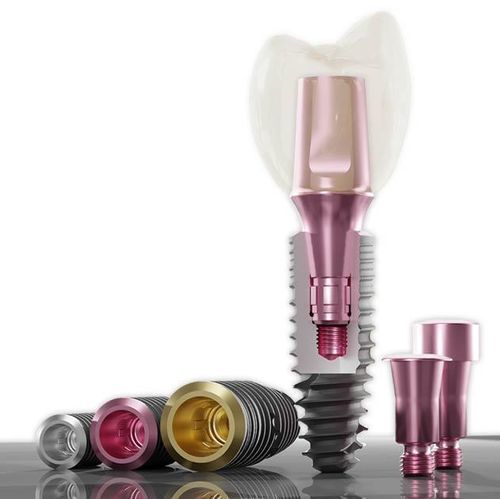

The BEGO Semados® RSXPro CC (Royal Shape – Conical Connection) is a dental implant system featuring a deep‑tapered (conical) implant–abutment connection with an 8° internal taper and pronounced platform switch. The design targets stable abutment fit, reduced microgap and simplified prosthetic handling for clinical workflows.

Overview
The RSXPro CC addresses esthetic and functional demands in restorative dentistry by using three internal prosthetic geometries (S, M, L) with color coding for simplified prosthetic assignment. Components are compatible with digital workflows and include scannable parts and digital analogs for CAD/CAM processes.

Key benefits

• STABLE CONNECTION: Deep‑tapered internal interface minimizes micromovements and supports crestal bone preservation.
• REDUCED BACTERIAL PENETRATION: Tight conical fit limits bacterial infiltration at the interface.
• CRESTAL BONE PRESERVATION & ESTHETICS: Pronounced platform switch supports soft‑tissue stability and esthetic emergence profiles.
• SIMPLIFIED PROSTHETICS: Only three internal geometries (S, M, L) with intuitive color coding simplify inventory and laboratory communication.
• FAST INSERTION: Low vertical insertion depth enables quick seating with precise fit.
• GUIDED SURGERY COMPATIBLE: Supports template‑guided workflows for implant diameters Ø 3.0–4.5 mm.

Prosthetic features
Prosthetic line offers up to five gingival heights per connection, uniformly concave components to guide soft tissue, scannable components, digital analogs for CAD/CAM, color coding (S = silver, M = pink, L = gold) and angled screw channel options to increase restorative flexibility.

Surgical & implant design
Implants incorporate an 8° internal taper, conical body with rounded apex, self‑tapping thread profile with optimized cutting angle for primary stability, and low vertical insertion depth. Cover screws are supplied; optional 2 mm cover screws available for specific surgical techniques. The three internal geometries are applied across diameters to reduce system complexity.

Services & manufacturing
Individual CAD/CAM prosthetic components are manufactured in BEGO's milling centre. The system is digitally ready with libraries for intraoral scan to final restoration workflows. Implants and components are developed and manufactured in Germany.

Warranty
BEGO Security Plus: 60‑month coverage including fees, prosthetic restoration and material costs up to EUR 2,500 per implant for eligible restorations.

Technical specifications

• Commercial name: BEGO Semados® RSXPro CC
• Implant–abutment connection: deep‑tapered (conical), 8° internal taper
• Prosthetic internal geometries: 3 variants (S, M, L) with color coding (S = silver, M = pink, L = gold)
• Prosthetic screw: new design with internal thread in prosthetic abutments to prevent screw falling out
• Vertical insertion depth: extremely low design for optimized stability and fit
• Platform switch: pronounced platform switch to shift interface away from crestal bone
• Thread design: self‑tapping with optimized cutting angle for primary stability
• Implant shape: conical with rounded apex, self‑centering insertion
• Prosthetic options: up to five gingival heights per connection; scannable components and digital analogs for CAD/CAM
• Cover screws: included standard; optional 2 mm height available
• Guided insertion diameters: Ø 3.0–4.5 mm supported
• Availability for challenging cases: example implant Ø 5.5 mm × 7 mm referenced
• Manufacture: developed and manufactured in Germany
• Warranty: BEGO Security Plus – 60 months; maximum coverage EUR 2,500 per implant
