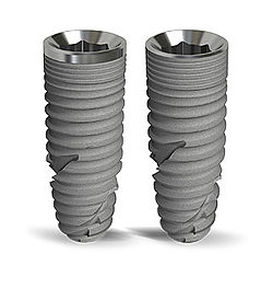

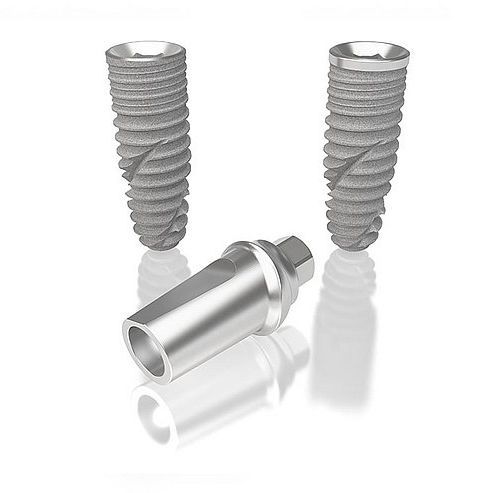

Conical dental implant BEGO Semados® RS/RSX

titaniumtapered internalnarrow

Product overview
BEGO Semados® RS/RSX (RS/RSXPro) implants are available with a machined shoulder (RS/RSPro) or a microstructured shoulder (RSX/RSXPro) and incorporate platform switching. The system is complemented by individually manufactured CAD/CAM prosthetic components and surgical guides. The implants are developed and produced in Germany to meet the requirements of implant dentists and patients.

Key features & benefits

• Low stresses in the implant — Self-tapping bionic thread designed for optimal load distribution and reduced implant stress.
• Integrated platform switch — Supports preservation of crestal bone and improves esthetic outcome.
• Rapid insertion — Inserts with only a few rotations; self-centering for a precise fit.
• Simple application — Cover screw included to simplify handling and clinical workflow.
• Optional guided/template-guided preparation — With the BEGO Guide System, implants Ø 3.0–4.5 mm can be positioned precisely and safely.
• High-quality manufacturing — 100% German development and production.

Your benefits

• Reduced implant stress thanks to the self-tapping bionic thread.
• Preservation of crestal bone through integrated platform switching.
• Time-saving insertion requiring only a few rotations.
• Easy handling with self-centering design and included cover screw.
• Guided surgery option for precise positioning (Ø 3.0–4.5 mm).
• Reliable supply and consistent quality from 100% German development and production.

Technical details

• Conical implant design with rounded apex.
• Self-tapping thread with optimal cutting angle.
• Available diameters: 3.0 / 3.75 / 4.1 / 4.5 / 5.5 mm.
• Available lengths: 7 / 8.5 / 10 / 11.5 / 13 / 15 mm.
• Manufactured from grade 4 pure titanium with TiPurePlus surface.
• Internal taper on the abutments ensures no gaps.
• RS/RSX 3.0 suitable for narrow anterior gaps (teeth 12, 22, 32–42).
• Diameter 5.5 mm in length 7 mm available for cases with limited bone height.

Characteristics / technical specifications

• Implant family: BEGO Semados® RS/RSX.
• Shoulder variants: machined shoulder (RS/RSPro) or microstructured shoulder (RSX/RSXPro).
• Platform: integrated platform switching.
• Thread: bionic self-tapping thread.
• Material: Grade 4 pure titanium (TiPurePlus surface).
• Diameters: 3.0 / 3.75 / 4.1 / 4.5 / 5.5 mm.
• Lengths: 7 / 8.5 / 10 / 11.5 / 13 / 15 mm.
• Clinical indications: narrow anterior gaps and limited bone height cases.
• Delivery: cover screw included; compatible with CAD/CAM prosthetic components and guided surgery workflows for Ø 3.0–4.5 mm.
