Conical dental implant BEGO Semados® SCX CC

conicaltaperedinternal

Introduction
Modern dentistry requires implant systems that combine esthetics, reliable mechanics and efficient workflows. The BEGO Semados® SCX CC (Conical Connection) expands the proven Semados® SCX platform with a deep-tapered internal connection designed for simplified handling, improved prosthetic predictability and long-term tissue stability.

Key benefits

• Stable and tight connection
  The deep-tapered internal implant–abutment interface provides a gap-free fit and reduces implant stress through a bionic thread design.
• Can reduce bacterial colonization
  The tapered interface minimizes microgaps and can limit bacterial penetration to support peri‑implant tissue health.
• Preservation of crestal bone and optimized esthetics
  A defined platform switch and controlled emergence profile help shape stable soft tissue for improved esthetic outcomes.
• Easy to use
  Two internal geometries (M, L) with intuitive color coding simplify prosthetic assignment and inventory management.
• Quick insertion
  Implant geometry enables insertion with a few turns to save surgical time while ensuring precise primary fit.
• Optional navigated/template-guided insertion
  Compatible with guided workflows for Ø 3.25 – 4.5 mm implants.

System design and prosthetic features

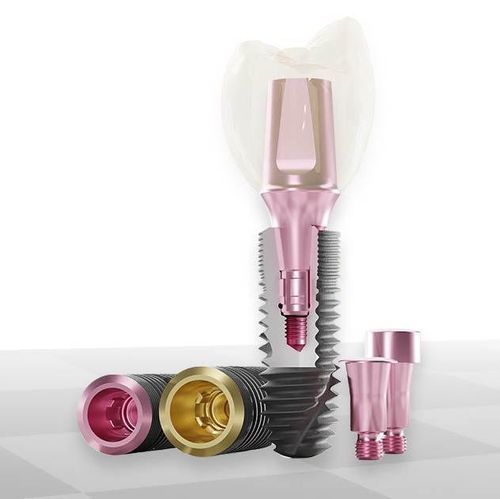

The system is built around an 8° deep-tapered implant–abutment connection with two internal prosthetic geometries (M = pink, L = gold). The prosthesis screw features an internal retention thread so the screw remains captured when abutments are removed. The connection design prevents cold welding and allows component detachment without difficulty. The prosthetic line offers a clear emergence profile, up to five gingival heights per connection, and full CAD/CAM compatibility with scannable components and digital analogs.

Surgical and implant features

• Extremely low vertical insertion depth
  Optimized for stability and precise fit even in limited bone height situations.
• Self-tapping thread design
  With an optimized cutting angle for controlled insertion and excellent primary stability.
• 8° internal taper
  Secures a stable abutment fit and minimizes micro-movements.
• Parallel-walled implant shape with rounded apex
  Facilitates self-centering during placement.
• Cover screws included
  Standard cover screws supplied; optional 2 mm height cover screws available for specific surgical protocols.

Indications and clinical scope
Suitable for single-tooth and multi-unit restorations, immediate restorations and esthetic positioning. The system supports screw‑retained restorations and angled screw channels where angulation is required. Examples of available sizes include diameters up to 5.5 mm and lengths down to 7 mm for limited bone height cases.

Manufacturing and warranty
Designed and manufactured in Germany under strict quality controls. BEGO Security Plus warranty: 60 months covering fees, prosthetic restoration and material costs (maximum coverage cited as EUR 2,500 per implant in manufacturer documentation).

Prosthetic workflow and services
The Conical prosthetic line supports efficient workflows with color coding, reduced prosthetic geometries, CAD/CAM-capable scannable components, digital libraries and availability of BEGO-manufactured CAD/CAM prosthetic components for rapid delivery.

Downloads (available for the product)
Product brochure and product catalog (PDF) available from the manufacturer's downloads section.

Technical specifications

• Product line / model name: BEGO Semados® SCX CC
• Implant–abutment connection: deep-tapered conical connection with 8° internal taper
• Internal geometries (prosthetic interfaces): two geometries (M, L) with color coding (M = pink, L = gold)
• Prosthetic heights: up to five gingival heights per connection (concave components to control soft tissue)
• Thread design: self-tapping with optimized cutting angle
• Implant shape: parallel-walled with rounded apex; very low vertical insertion depth
• Indicated implant diameters (mentioned): Ø 3.25 – 4.5 mm (guided insertion guidance); implants up to Ø 5.5 mm and lengths down to 7 mm referenced
• Prosthetic features: prosthesis screw with retention (screw remains captured when abutments are removed); prevention of cold welding
• Prosthetic workflow: CAD/CAM-capable, scannable components, digital analogs and libraries
• Cover screws: included standard; optional 2 mm height available
• Warranty: BEGO Security Plus — 60 months (5 years); maximum warranty coverage cited (EUR 2,500 per implant)
