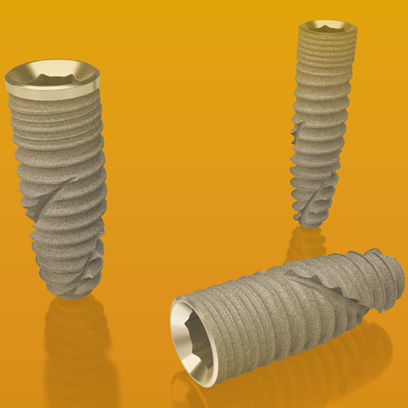

Conical dental implant BEGO Semados® RS/RSX

titaniumtapered internalfor dental clinics

Product overview
BEGO Semados® RS/RSX (including RS/RSPro and RSX/RSXPro variants) are conical dental implants with either a machined shoulder (RS/RSPro) or a microstructured shoulder (RSX/RSXPro). The system features integrated platform switching and is supported by CAD/CAM prosthetic components and surgical guides. Designed and manufactured in Germany to meet clinical requirements.

Key benefits

• Reduced implant stress — self-tapping bionic thread with stress‑appropriate geometry for improved load distribution.
• Integrated platform switching — supports crestal bone preservation and better esthetic outcomes.
• Rapid insertion — self‑centering, inserts with few rotations to save clinical time and ensure precise seating.
• Practical handling — cover screw supplied to simplify clinical workflow.
• Guided workflow option — compatible with BEGO Guide System for navigated/template-guided placement of Ø 3.0–4.5 mm implants.

Technical details

• Conical implant design with rounded apex.
• Self‑tapping bionic thread with optimized cutting angle.
• Available diameters: 3.0 / 3.75 / 4.1 / 4.5 / 5.5 mm.
• Available lengths: 7 / 8.5 / 10 / 11.5 / 13 / 15 mm.
• Material: grade 4 pure titanium with TiPurePlus ultrapure homogeneous surface.
• Internal taper on the abutment interface to avoid micro‑gaps.
• RS/RSX 3.0 indicated for narrow anterior gaps (teeth 12, 22, 32–42).
• Diameter 5.5 mm available in 7 mm length for cases with limited bone height.

Downloads (selected)

• The King among the BEGO Implants — BEGO Semados® RSXPro (product brochure)
• Work instructions for BEGO Semados® RS/RSX Implant (surgical/work instructions)
• BEGO Semados® RS/RSX-Implants – Technical Data Sheet

Technical specifications

• Implant design: conical with rounded apex.
• Thread: self‑tapping bionic thread for reduced implant stress and optimized load distribution.
• Platform: integrated platform switching to support crestal bone preservation and esthetics.
• Insertion: rapid, self‑centering insertion requiring few rotations; cover screw included.
• Material: grade 4 pure titanium with TiPurePlus surface (ultrapure homogeneous surface).
• Abutment interface: internal taper to avoid micro‑gaps.
• Available diameters: 3.0 / 3.75 / 4.1 / 4.5 / 5.5 mm.
• Available lengths: 7 / 8.5 / 10 / 11.5 / 13 / 15 mm.
• Special indications: 3.0 mm for narrow anterior gaps (teeth 12, 22, 32–42); 5.5 mm in 7 mm length for reduced bone height.
• Optional workflow: guided/template‑guided preparation with BEGO Guide System for Ø 3.0–4.5 mm implants.
• Quality: 100% German development and production.
