Digital veterinary X-ray system Model Y
with table

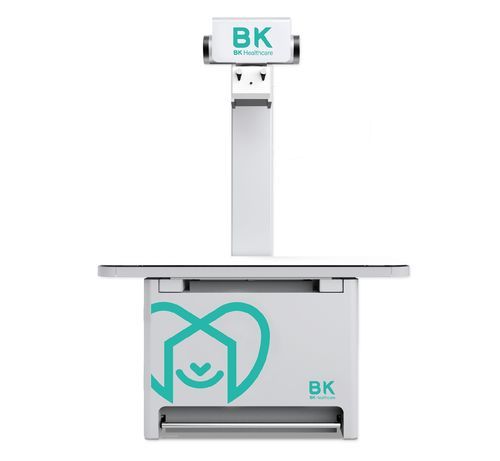

Digital veterinary X-ray system - Model Y - Bikang Tiancheng (Shanghai) Information Technology Co., Ltd. - with table
Digital veterinary X-ray system - Model Y - Bikang Tiancheng (Shanghai) Information Technology Co., Ltd. - with table
Add to favorites
Compare this product
Go to the Bikang Tiancheng (Shanghai) Information Technology Co., Ltd. website for more information

Characteristics

Technology
digital
Ergonomics
with table

Description

Product Overview
  • Designed for large pets; enlarged four-way floating table with ergonomic operating height
  • High-definition imaging with multiple display modes
  • 17 × 17 in cesium iodide amorphous silicon (a-Si) flat panel detector; 139 μm pixel size (2912 × 2912)
  • Intelligent positioning display with presets for cats, dogs and exotic species to simplify workflows

Dimensions
1400 × 900 × 1940 mm

Technical Specifications
  • Detector: CsI a-Si flat panel, imaging size 17 × 17 in, pixel size 139 μm, matrix 2912 × 2912, 16-bit A/D conversion
  • High-voltage generator: supply voltage 220 V, nominal power 32 kW, maximum 125 kV, maximum 400 mA
  • X-ray tube (Canon): focus size 1.0 mm / 2.0 mm, anode heat capacity 140 kHU, focus power large 42.5 kW / small 21 kW

Pet bed
  • Bedface material: melamine resin plate
  • Bedface size: four-way movable, 1400 mm × 720 mm
  • Bed panel bearing capacity (static): ≤150 KG

Software
Imaging and processing software for veterinary use, with acquisition, measurement and reporting tools
